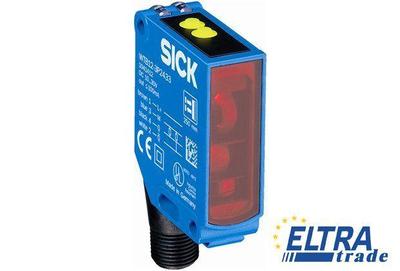

Sick WL12-3N2431

Photoelectric sensors W12
Sick WL12-3N2431
One click request


Part Number1041440
Supply voltage:10 V DC ... 30 V DC
Protection class:II
Light source:LED
Power consumption:≤ 40 mA
Ambient operating temperature:-40 °C ... 60 °C
Sensing range max.:0 m ... 7 m
Wave length:640 nm
Type of light:Visible red light
Polarisation filter:+
Housing design (light emission):Rectangular
Switching frequency:1,500 Hz
Sensing range:0 m ... 5 m
Weight:120 g
Adjustment:Potentiometer, 5 turns
Angle of dispersion:Ca. 1.5 °
Dimensions (W x H x D):15.6 mm x 48.5 mm x 42 mm
Response time:≤ 330 µs
Output current Imax.:100 mA
Sensor/detection principle:Photoelectric retro-reflective sensor, autocollimation
Housing material:Metal
Light spot size (distance):Ø 100 mm (3 m)
Ripple:≤ 5 Vpp
Switching mode:Light/dark switching
Output function:Complementary
Ambient storage temperature:-40 °C ... 75 °C
Circuit protection:A, C, D
Switching output:NPN
UL File No.:NRKH.E181493 & NRKH7.E181493
Connection type:Connector M12, 4-pin
Signal voltage NPN HIGH / LOW:Approx. VS / < 2.5 V
Enclosure rating:IP 66
IP 67
IP 69K
