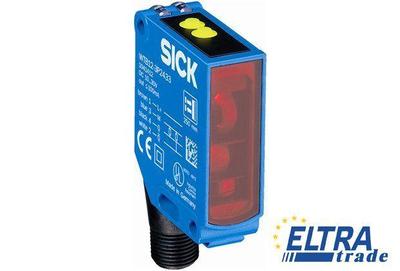

Sick WL12-3N2441

Photoelectric sensors W12
Sick WL12-3N2441
Price on Request
One click request

Specification:

Part Number1041446
Light source:LED
Signal voltage NPN HIGH / LOW:Approx. VS / < 2.5 V
Response time:≤ 330 µs
Special features:Without polarisation filter
Output current Imax.:100 mA
Housing material:Metal
Sensing range max.:0 m ... 7 m
UL File No.:NRKH.E181493 & NRKH7.E181493
Sensor/detection principle:Photoelectric retro-reflective sensor, autocollimation
Weight:120 g
Switching mode:Light/dark switching
Enclosure rating:IP 66
IP 67
IP 69K
Ambient storage temperature:-40 °C ... 75 °C
Angle of dispersion:Ca. 1.5 °
Housing design (light emission):Rectangular
Protection class:II
Switching frequency:1,500 Hz
Type of light:Visible red light
Switching output:NPN
Light spot size (distance):Ø 100 mm (3 m)
Connection type:Connector M12, 4-pin
Adjustment:Potentiometer, 5 turns
Ambient operating temperature:-40 °C ... 60 °C
Power consumption:≤ 40 mA
Sensing range:0 m ... 5 m
Output function:Complementary
Supply voltage:10 V DC ... 30 V DC
Wave length:640 nm
Circuit protection:A, C, D
Dimensions (W x H x D):15.6 mm x 48.5 mm x 42 mm
