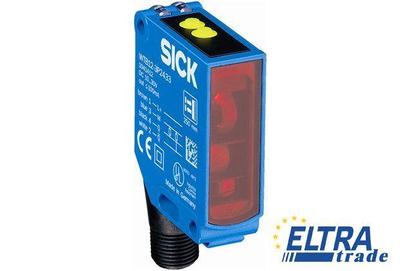

Sick WL12-3N2451

Photoelectric sensors W12
Sick WL12-3N2451
125.42
One click request

Specification:

Part Number1041450
Switching frequency:1,500 Hz
Enclosure rating:IP 66
IP 67
IP 69K
UL File No.:NRKH.E181493 & NRKH7.E181493
Switching mode:Light/dark switching
Wave length:640 nm
Sensing range max.:0 m ... 2 m
Light source:LED
Housing material:Metal
Light spot size (distance):Ø 2 mm (90 mm)
Angle of dispersion:Ca. 5 °
Adjustment:Potentiometer, 5 turns
Power consumption:≤ 40 mA
Protection class:II
Polarisation filter:+
Sensor/detection principle:Photoelectric retro-reflective sensor, autocollimation
Output current Imax.:100 mA
Response time:≤ 330 µs
Sensing range:0 m ... 1 m
Dimensions (W x H x D):15.6 mm x 48.5 mm x 42 mm
Output function:Complementary
Circuit protection:A, C, D
Housing design (light emission):Rectangular
Type of light:Visible red light
Ambient operating temperature:-40 °C ... 60 °C
Connection type:Connector M12, 4-pin
Special feature:Focused optics
Supply voltage:10 V DC ... 30 V DC
Weight:120 g
Signal voltage NPN HIGH / LOW:Approx. VS / < 2.5 V
Switching output:NPN
Ambient storage temperature:-40 °C ... 75 °C
