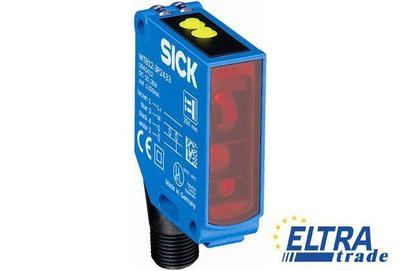

Sick WL12-3P1131

Photoelectric sensors W12
Sick WL12-3P1131
One click request


Part Number1041437
Protection class:II
Type of light:Visible red light
Sensor/detection principle:Photoelectric retro-reflective sensor, autocollimation
Light source:LED
Ambient operating temperature:-40 °C ... 60 °C
Polarisation filter:+
Connection type:Cable, 4-wire, 2 m
Response time:≤ 330 µs
Power consumption:≤ 30 mA
Circuit protection:A, C, D
Ripple:≤ 5 Vpp
Light spot size (distance):Ø 100 mm (3 m)
Enclosure rating:IP 66
IP 67
IP 69K
Weight:200 g
Wave length:640 nm
Switching mode:Light/dark switching
Ambient storage temperature:-40 °C ... 75 °C
Output current Imax.:100 mA
Signal voltage PNP HIGH / LOW:> Uv - 2,5 V / ca. 0 V
Housing design (light emission):Rectangular
Switching output:PNP
Conductor cross-section:0.25 mm²
Output function:Complementary
Dimensions (W x H x D):15.6 mm x 48.5 mm x 42 mm
Sensing range:0 m ... 5 m
Cable material:PVC
UL File No.:NRKH.E181493 & NRKH7.E181493
Adjustment:Potentiometer, 5 turns
Sensing range max.:0 m ... 7 m
Supply voltage:10 V DC ... 30 V DC
Housing material:Metal
Switching frequency:1,500 Hz
Angle of dispersion:Ca. 1.5 °
