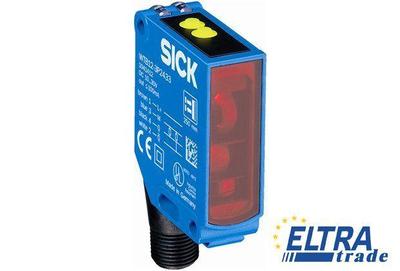

Sick WL12-3P1141

Photoelectric sensors W12
Sick WL12-3P1141
One click request


Part Number1041445
Weight:200 g
Sensing range max.:0 m ... 7 m
Adjustment:Potentiometer, 5 turns
Type of light:Visible red light
Light spot size (distance):Ø 100 mm (3 m)
Sensing range:0 m ... 5 m
Housing design (light emission):Rectangular
Angle of dispersion:Ca. 1.5 °
Enclosure rating:IP 66
IP 67
IP 69K
Switching output:PNP
Switching frequency:1,500 Hz
Output current Imax.:100 mA
Sensor/detection principle:Photoelectric retro-reflective sensor, autocollimation
UL File No.:NRKH.E181493 & NRKH7.E181493
Switching mode:Light/dark switching
Cable material:PVC
Ambient operating temperature:-40 °C ... 60 °C
Circuit protection:A, C, D
Wave length:640 nm
Power consumption:≤ 30 mA
Connection type:Cable, 4-wire, 2 m
Protection class:II
Output function:Complementary
Special features:Without polarisation filter
Response time:≤ 330 µs
Housing material:Metal
Light source:LED
Supply voltage:10 V DC ... 30 V DC
Dimensions (W x H x D):15.6 mm x 48.5 mm x 42 mm
Signal voltage PNP HIGH / LOW:> Uv - 2,5 V / ca. 0 V
Ambient storage temperature:-40 °C ... 75 °C
Conductor cross-section:0.25 mm²
