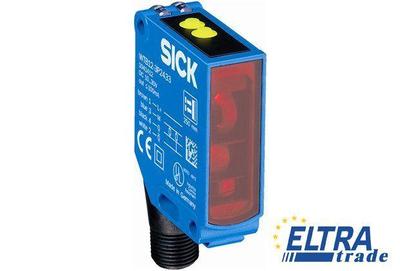

Sick WL12-3P1731

Photoelectric sensors W12
Sick WL12-3P1731
129.49
One click request

Specification:

Part Number1041438
Enclosure rating:IP 66
IP 67
IP 69K
Polarisation filter:+
Signal voltage PNP HIGH / LOW:> Uv - 2,5 V / ca. 0 V
UL File No.:NRKH.E181493 & NRKH7.E181493
Cable material:PVC
Switching output:PNP
Light spot size (distance):Ø 100 mm (3 m)
Housing material:Metal
Adjustment:Potentiometer, 5 turns
Dimensions (W x H x D):15.6 mm x 48.5 mm x 42 mm
Sensing range max.:0 m ... 7 m
Output function:Complementary
Light source:LED
Housing design (light emission):Rectangular
Connection type:Cable, 4-wire, 3 m
Ambient operating temperature:-40 °C ... 60 °C
Supply voltage:10 V DC ... 30 V DC
Switching frequency:1,500 Hz
Ripple:≤ 5 Vpp
Angle of dispersion:Ca. 1.5 °
Power consumption:≤ 30 mA
Protection class:II
Circuit protection:A, C, D
Ambient storage temperature:-40 °C ... 75 °C
Response time:≤ 330 µs
Sensor/detection principle:Photoelectric retro-reflective sensor, autocollimation
Weight:250 g
Sensing range:0 m ... 5 m
Wave length:640 nm
Output current Imax.:100 mA
Type of light:Visible red light
Switching mode:Light/dark switching
