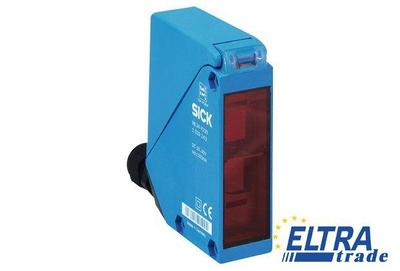

Sick WL34-B430S03

Other Photoelectric Sensors
Sick WL34-B430S03
95.94 EUR

Specification:

Part Number1027858
Wave length:660 nm
Circuit protection:A, C, D
Ambient operating temperature:-40 °C ... +60 °C
Sensing range max.:0.03 m ... 22 m
Connection type:Connector M12, 4-pin
Output current Imax.:100 mA
Light source:LED
Switching output:NPN, PNP
Enclosure rating:IP 67
Dimensions (W x H x D):27 mm x 92 mm x 70 mm
Weight:140 g
Response time:≤ 500 µs
Switching mode:Dark switching, Light switching
Polarisation filter:+
Adjustment:Potentiometer
Type of light:Visible red light
Supply voltage:10 V DC ... 30 V DC
Housing design (light emission):Rectangular
Ripple:< 5 Vpp
Switching mode selector:Selectable via light/dark selector, Selectable via PNP/NPN selector
Protection class:II
Special device:+
Sensor/detection principle:Photoelectric retro-reflective sensor, Standard optics
Switching frequency:1,000 Hz
UL File No.:NRKH.E181493 & NRKH7.E181493
Power consumption:≤ 50 mA
Light spot size (distance):Ø 250 mm (15 m)
Ambient storage temperature:-40 °C ... +75 °C
Housing material:ABS, Plastic
Special features:No test input TE
Sensing range:0.03 m ... 15 m
