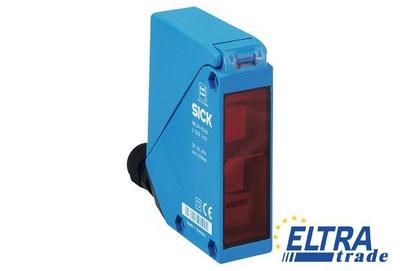

Sick WL34-V530

Other Photoelectric Sensors
Sick WL34-V530
100.65 EUR

Specification:

Part Number1019247
Ambient storage temperature:-40 °C ... +75 °C
Type of light:Visible red light
Supply voltage:10 V DC ... 30 V DC
Weight:140 g
Switching mode selector:Selectable via light/dark selector, Selectable via PNP/NPN selector
Ambient operating temperature:-40 °C ... +60 °C
Housing material:ABS, Plastic
Response time:≤ 500 µs
Output current Imax.:100 mA
Enclosure rating:IP 67
Wave length:660 nm
Sensing range max.:0.03 m ... 22 m
UL File No.:NRKH.E181493 & NRKH7.E181493
Sensing range:0.03 m ... 22 m
Test input sender off:TE to 0 V
Alarm output:+
Adjustment:Potentiometer
Switching frequency:1,000 Hz
Protection class:II
Dimensions (W x H x D):27 mm x 92 mm x 70 mm
Connection type:Male connector M12, 5-pin
Polarisation filter:+
Housing design (light emission):Rectangular
Circuit protection:A, C, D
Light spot size (distance):Ø 250 mm (15 m)
Switching output:NPN, PNP
Special device:-
Sensor/detection principle:Photoelectric retro-reflective sensor, Standard optics
Power consumption:≤ 50 mA
Ripple:< 5 Vpp
Switching mode:Dark switching, Light switching
Light source:LED
