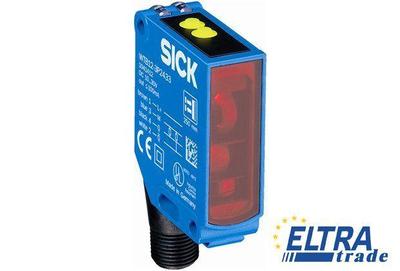

Sick WSE12-3N1131

Photoelectric sensors W12
Sick WSE12-3N1131
One click request


Part Number1041463
Light spot size (distance):Ø 220 mm (15 m)
Cable material:PVC
Angle of dispersion:Ca. 1.5 °
Ambient storage temperature:-40 °C ... 75 °C
UL File No.:NRKH.E181493 & NRKH7.E181493
Protection class:II
Sensor/detection principle:Through-beam photoelectric sensor
Connection type:Cable, 4-wire, 2 m
Power consumption, sender:≤ 30 mA
Circuit protection:A, C, D
Signal voltage NPN HIGH / LOW:Approx. VS / < 2.5 V
Output function:Complementary
Response time:≤ 330 µs
Output current Imax.:100 mA
Ambient operating temperature:-40 °C ... 60 °C
Supply voltage:10 V DC ... 30 V DC
Weight:200 g
Wave length:640 nm
Switching output:NPN
Sensing range:0 m ... 15 m
Part number of individual components:Receiver, WE12-3N1131, 2045606, Sender, WS12-3D1130, 2045601
Conductor cross-section:0.25 mm²
Test input sender off:TE to 0 V
Housing material:Metal
Sensing range max.:0 m ... 20 m
Switching frequency:1,500 Hz
Enclosure rating:IP 66
IP 67
IP 69K
Light source:LED
Power consumption, receiver:≤ 25 mA
Housing design (light emission):Rectangular
Switching mode:Light/dark switching
Adjustment:Potentiometer, 5 turns
Type of light:Visible red light
Dimensions (W x H x D):15.6 mm x 48.5 mm x 42 mm
