WSE12-3P2431S40

Photoelectric sensors W12

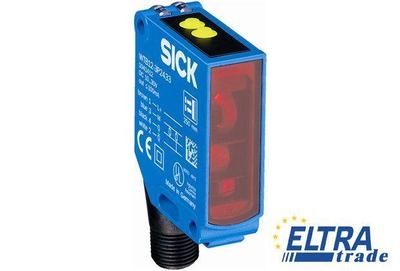

Sick WSE12-3P2431S40

We are sorry, but Sick WSE12-3P2431S40 is no longer available to order.

Specification:

Part Number1044121
UL File No.:NRKH.E181493 & NRKH7.E181493
Part number of individual components:Receiver, WE12-3P2431S40, 2047501, Sender, WS12-3D2430S40, 2047500
Power consumption, sender:≤ 30 mA
Special features:0,5 s anzugsverzögert, Slotted diaphragm 1 mm in front of receiver, Slotted diaphragm 1.5 mm in front of sender
Output function:Complementary
Enclosure rating:IP 67

Circuit protection:A, C, D
Switching mode:Light/dark switching
Housing design (light emission):Rectangular
Response time:≤ 330 µs
Adjustment:Potentiometer, 5 turns
Switching frequency:1,500 Hz
Angle of dispersion:Ca. 1.5 °
Protection class:II
Ambient storage temperature:-40 °C ... 75 °C
Ambient operating temperature:-40 °C ... 60 °C
Sensing range max.:0 m ... 1.7 m
Test input sender off:Sender off, TE to 0 V
Dimensions (W x H x D):15.6 mm x 48.5 mm x 42 mm
Wave length:640 nm
Connection type:Connector M12, 4-pin
Weight:120 g
Sensing range:0 m ... 1.2 m
Output current Imax.:100 mA
Housing material:Metal
Type of light:Visible red light
Sensor/detection principle:Through-beam photoelectric sensor
Special device:+
Light source:LED
Switching output:PNP
Supply voltage:10 V DC ... 30 V DC
