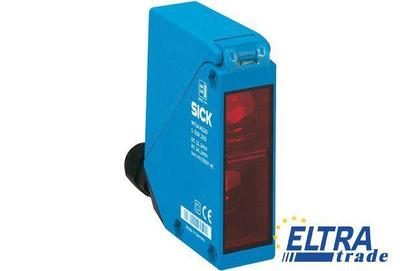

Sick WT34-B450

Other Photoelectric Sensors
Sick WT34-B450
239.92 EUR

Specification:

Part Number1019234
UL File No.:NRKH.E181493 & NRKH7.E181493
Wave length:660 nm
Test input sender off:TE to 0 V
Delay time:Adjustable via time delay selector switch: 0.5 ... 10 s
Weight:140 g
Ripple:< 5 Vpp
Connection type:Connector M12, 4-pin
Power consumption:≤ 50 mA
Switching output:NPN, PNP
Housing material:ABS, Plastic
Light spot size (distance):Ø 40 mm (1,200 mm)
Sensing range max.:100 mm ... 1,200 mm
Time type:Off delay
Dimensions (W x H x D):27 mm x 92 mm x 70 mm
Housing design (light emission):Rectangular
Supply voltage:10 V DC ... 30 V DC
Circuit protection:A, C, D
Adjustment:Potentiometer
Switching mode selector:Selectable via light/dark selector, Selectable via PNP/NPN selector
Response time:≤ 500 µs
Sensing range:100 mm ... 1,200 mm
Ambient storage temperature:-40 °C ... +75 °C
Enclosure rating:IP 67
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
Ambient operating temperature:-40 °C ... +60 °C
Light source:LED
Switching mode:Dark switching, Light switching
Type of light:Visible red light
Output current Imax.:100 mA
Protection class:II
Switching frequency:1,000 Hz
