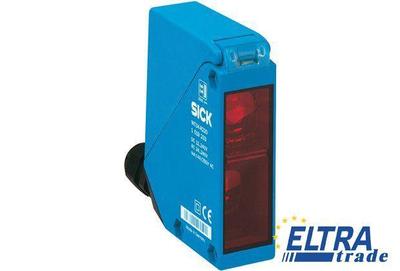

Sick WT34-R210S02

Other Photoelectric Sensors
Sick WT34-R210S02
One click request


Part Number1022603
Housing design (light emission):Rectangular
Light source:LED
Power consumption:< 2 VA
Dimensions (W x H x D):27 mm x 92 mm x 70 mm
Light spot size (distance):Ø 80 mm (2,500 mm)
Switching output:Relay, electrically isolated
Switching current (switching voltage):4 A (24 V DC), 4 A (250 V AC)
Sensing range:100 mm ... 2,500 mm
Switching mode:Dark switching, Light switching
Housing material:ABS, Plastic
Usage category:AC-15, DC-13, According to EN 60947-1
Response time:≤ 10 ms
Output function:Change-over contacts
Supply voltage:12 V DC ... 240 V DC, 24 V ... 240 V AC
Circuit protection:A, C
Switching frequency:10 Hz
Protection class:II
Type of light:Infrared light
Special device:+
UL File No.:NRKH.E181493 & NRKH7.E181493
Ambient operating temperature:-40 °C ... +60 °C
Connection type:Terminal connection with M16 gland
Weight:140 g
Sensing range max.:100 mm ... 2,500 mm
Special features:Dark switching (pre-setting)
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
Switching mode selector:Dark switching (pre-setting), Selectable via light/dark selector
Ambient storage temperature:-40 °C ... +75 °C
Enclosure rating:IP 67
