WTB12-3P2411T01

Photoelectric sensors W12

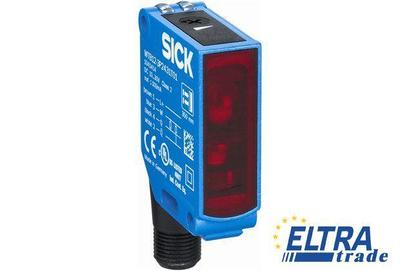

Sick WTB12-3P2411T01

We are sorry, but Sick WTB12-3P2411T01 is no longer available to order.

Specification:

Part Number1041425
Switching output:PNP
Light source:LED
Supply voltage:10 V DC ... 30 V DC
Ambient storage temperature:-40 °C ... +75 °C
Switching frequency:1,500 Hz
Light spot size (distance):Ø 6 mm (200 mm)
Sensing range max.:20 mm ... 600 mm
Power consumption:≤ 55 mA
Dimensions (W x H x D):15.6 mm x 48.5 mm x 42 mm
Adjustment:Potentiometer, 5 turns
Ambient operating temperature:-40 °C ... +60 °C
UL File No.:NRKH.E181493 & NRKH7.E181493
Sensing range:20 mm ... 600 mm
Circuit protection:A, C, D
Housing material:PTFE
Output current Imax.:100 mA
Output function:Complementary
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
Type of light:Infrared light
Switching mode:Light/dark switching
Enclosure rating:IP 66
IP 67
IP 69K
Connection type:Connector M12, 4-pin
Wave length:850 nm
Weight:120 g
Special features:Teflon coated housing
Housing design (light emission):Rectangular
Response time:≤ 330 µs
Ripple:≤ 5 Vpp
Protection class:II
