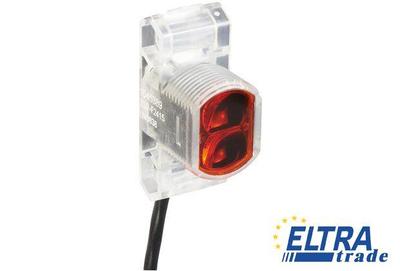

Sick ZL2-E2415

Photoelectric proximity Z-sensors
Sick ZL2-E2415

We are sorry, but Sick ZL2-E2415 is no longer available to order.

Specification:

Part Number1045390
Ambient storage temperature:-40 °C ... 70 °C
Switching mode:Dark switching
Housing material:Glass fiber reinforced ABS plastic, Plastic
Thread diameter (housing):M18 x 1
Circuit protection:A, D
Housing design (light emission):Hybrid
Sensing range:0.1 m ... 3 m
Items supplied:Mounting nut M18
Dimensions (W x H x D):13.6 mm x 34.8 mm x 21.9 mm
Output current Imax.:50 mA
Connection type:Cable, 3-wire, 2 m
Polarisation filter:+
Ambient operating temperature:-25 °C ... 50 °C
Light spot size (distance):125 mm (1 m)
Sensor/detection principle:Photoelectric retro-reflective sensor
Cable material:PVC
Protection class:III
Switching output:NPN
Power consumption:< 20 mA
Wave length:660 nm
Light source:LED
Supply voltage:10 V DC ... 30 V DC
Type of light:Visible red light
Conductor cross-section:0.23 mm²
Enclosure rating:IP 67
Switching frequency:400 Hz
Sensing range max.:0.1 m ... 4.8 m
