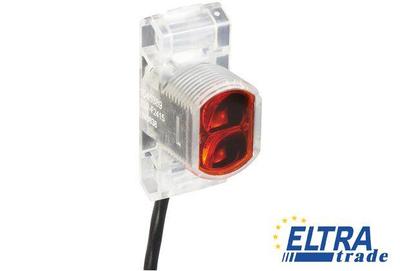

Sick ZL2-F2415

Photoelectric proximity Z-sensors
Sick ZL2-F2415

We are sorry, but Sick ZL2-F2415 is no longer available to order.


Part Number1045389
Supply voltage:10 V DC ... 30 V DC
Dimensions (W x H x D):13.6 mm x 34.8 mm x 21.9 mm
Enclosure rating:IP 67
Light spot size (distance):125 mm (1 m)
Cable material:PVC
Thread diameter (housing):M18 x 1
Switching mode:Dark switching
Output current Imax.:50 mA
Switching frequency:400 Hz
Light source:LED
Housing material:Glass fiber reinforced ABS plastic, Plastic
Switching output:PNP
Items supplied:Mounting nut M18
Ambient storage temperature:-40 °C ... 70 °C
Sensing range max.:0.1 m ... 4.8 m
Wave length:660 nm
Connection type:Cable, 3-wire, 2 m
Sensor/detection principle:Photoelectric retro-reflective sensor
Type of light:Visible red light
Ambient operating temperature:-25 °C ... 50 °C
Conductor cross-section:0.23 mm²
Circuit protection:A, D
Housing design (light emission):Hybrid
Power consumption:< 20 mA
Polarisation filter:+
Protection class:III
Sensing range:0.1 m ... 3 m
