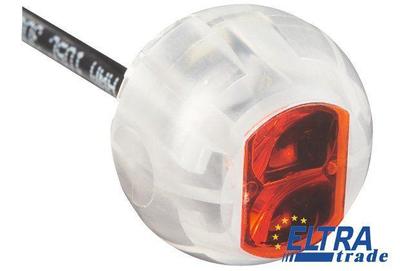

Sick ZL3-E2421

Photoelectric proximity Z-sensors
Sick ZL3-E2421

We are sorry, but Sick ZL3-E2421 is no longer available to order.

Specification:

Part Number1045536
Power consumption:< 20 mA
Connection type:Cable with plug, M12, 4-pin, 150 mm
Ambient storage temperature:-40 °C ... 70 °C
Enclosure rating:IP 67
Ambient operating temperature:-25 °C ... 50 °C
Light source:LED
Polarisation filter:+
Wave length:660 nm
Protection class:III
Housing material:Glass fiber reinforced ABS plastic
Housing design (light emission):Hybrid
Switching frequency:400 Hz
Supply voltage:10 V DC ... 30 V DC
Light spot (distance):125 mm (1 m)
Sensor/detection principle:Photoelectric retro-reflective sensor
Sensing range max.:0.1 m ... 4.8 m
Sensing range:0.1 m ... 3 m
Ripple:< 5 Vpp
Output current Imax.:50 mA
Circuit protection:A
D
Housing length:25 mm
Type of light:Visible red light
Switching output:NPN, Dark-switching
