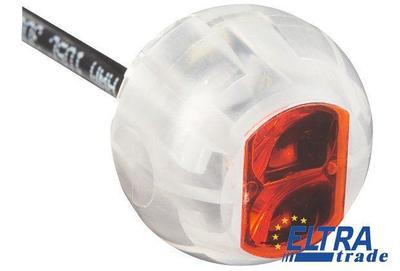

Sick ZL3-E2431

Photoelectric proximity Z-sensors
Sick ZL3-E2431

We are sorry, but Sick ZL3-E2431 is no longer available to order.


Part Number1045540
Enclosure rating:IP 67
Output current Imax.:50 mA
Sensing range max.:0.1 m ... 4.8 m
Ripple:< 5 Vpp
Wave length:660 nm
Sensing range:0.1 m ... 3 m
Power consumption:< 20 mA
Housing material:Glass fiber reinforced ABS plastic
Light source:LED
Switching frequency:400 Hz
Housing length:25 mm
Switching output:NPN, Dark-switching
Ambient storage temperature:-40 °C ... 70 °C
Ambient operating temperature:-25 °C ... 50 °C
Connection type:Cable with plug, M8, 4-pin, 150 mm
Sensor/detection principle:Photoelectric retro-reflective sensor
Housing design (light emission):Hybrid
Light spot (distance):125 mm (1 m)
Type of light:Visible red light
Protection class:III
Polarisation filter:+
Circuit protection:A
Supply voltage:10 V DC ... 30 V DC
