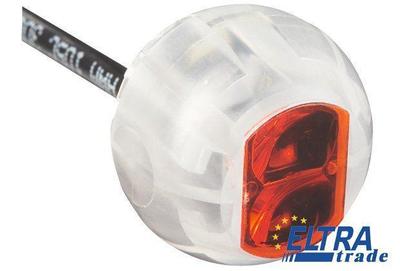

Sick ZL3-F2415

Photoelectric proximity Z-sensors
Sick ZL3-F2415

We are sorry, but Sick ZL3-F2415 is no longer available to order.


Part Number1045531
Housing length:25 mm
Ripple:< 5 Vpp
Housing material:Glass fiber reinforced ABS plastic
Housing design (light emission):Hybrid
Light spot (distance):125 mm (1 m)
Sensing range max.:0.1 m ... 4.8 m
Sensor/detection principle:Photoelectric retro-reflective sensor
Protection class:III
Ambient storage temperature:-40 °C ... 70 °C
Connection type:Cable, 3-wire, 2 m
Switching frequency:400 Hz
Power consumption:< 20 mA
Circuit protection:A
Polarisation filter:+
Ambient operating temperature:-25 °C ... 50 °C
Light source:LED
Wave length:660 nm
Enclosure rating:IP 67
Conductor cross-section:0.23 mm²
Cable material:PVC
Supply voltage:10 V DC ... 30 V DC
Type of light:Visible red light
Switching output:PNP, Dark-switching
Sensing range:0.1 m ... 3 m
Output current Imax.:50 mA
