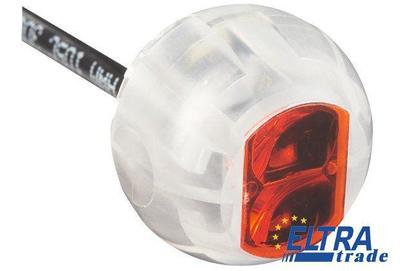

Sick ZL3-F2421

Photoelectric proximity Z-sensors
Sick ZL3-F2421

We are sorry, but Sick ZL3-F2421 is no longer available to order.

Specification:

Part Number1045535
Polarisation filter:+
Light spot (distance):125 mm (1 m)
Light source:LED
Sensing range:0.1 m ... 3 m
Ambient storage temperature:-40 °C ... 70 °C
Supply voltage:10 V DC ... 30 V DC
Connection type:Cable with plug, M12, 4-pin, 150 mm
Power consumption:< 20 mA
Protection class:III
Sensor/detection principle:Photoelectric retro-reflective sensor
Switching output:PNP, Dark-switching
Circuit protection:A
D
Housing design (light emission):Hybrid
Ambient operating temperature:-25 °C ... 50 °C
Switching frequency:400 Hz
Ripple:< 5 Vpp
Housing material:Glass fiber reinforced ABS plastic
Output current Imax.:50 mA
Housing length:25 mm
Enclosure rating:IP 67
Type of light:Visible red light
Sensing range max.:0.1 m ... 4.8 m
Wave length:660 nm
