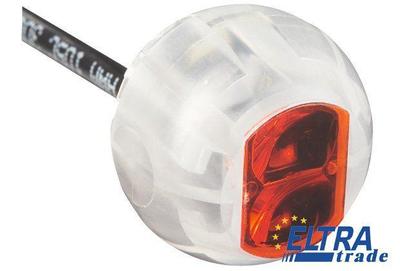

Sick ZL3-N2415

Photoelectric proximity Z-sensors
Sick ZL3-N2415

We are sorry, but Sick ZL3-N2415 is no longer available to order.

Specification:

Part Number1045529
Protection class:III
Housing material:Glass fiber reinforced ABS plastic
Housing length:25 mm
Supply voltage:10 V DC ... 30 V DC
Conductor cross-section:0.23 mm²
Connection type:Cable, 3-wire, 2 m
Sensing range max.:0.1 m ... 4.8 m
Enclosure rating:IP 67
Ambient storage temperature:-40 °C ... 70 °C
Sensing range:0.1 m ... 3 m
Sensor/detection principle:Photoelectric retro-reflective sensor
Light spot (distance):125 mm (1 m)
Light source:LED
Switching frequency:400 Hz
Cable material:PVC
Power consumption:< 20 mA
Switching output:NPN, Light-switching
Ripple:< 5 Vpp
Polarisation filter:+
Housing design (light emission):Hybrid
Circuit protection:A
D
Output current Imax.:50 mA
Ambient operating temperature:-25 °C ... 50 °C
Type of light:Visible red light
Wave length:660 nm
