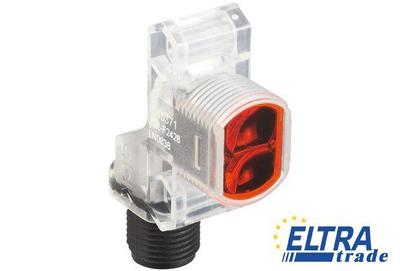

Sick ZT2-N4228

Photoelectric proximity Z-sensors
Sick ZT2-N4228

We are sorry, but Sick ZT2-N4228 is no longer available to order.


Part Number1045476
Switching output:NPN
Ambient operating temperature:-25 °C ... 50 °C
Protection class:III
Ambient storage temperature:-40 °C ... 70 °C
Sensing range max.:1 mm ... 100 mm
Light spot size (distance):20 mm (100 mm)
Switching mode:Light switching
Items supplied:Mounting nut M18
Enclosure rating:IP 67
Power consumption:< 20 mA
Wave length:880 nm
Type of light:Infrared light
Housing design (light emission):Hybrid
Sensor/detection principle:Photoelectric proximity sensor, energetic
Switching frequency:200 Hz
Output current Imax.:50 mA
Connection type:Connector M12, 4-pin
Supply voltage:10 V DC ... 30 V DC
Thread diameter (housing):M18 x 1
Light source:LED
Circuit protection:A, D
Sensing range:1 mm ... 100 mm
Dimensions (W x H x D):13.6 mm x 45.2 mm x 31.7 mm
Housing material:Glass fiber reinforced ABS plastic, Plastic
