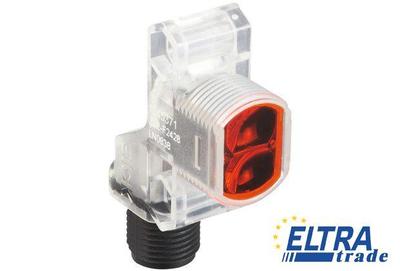

Sick ZT2-N5228

Photoelectric proximity Z-sensors
Sick ZT2-N5228

We are sorry, but Sick ZT2-N5228 is no longer available to order.


Part Number1045468
Items supplied:Mounting nut M18
Thread diameter (housing):M18 x 1
Output current Imax.:50 mA
Supply voltage:10 V DC ... 30 V DC
Sensor/detection principle:Photoelectric proximity sensor, energetic
Light source:LED
Power consumption:< 20 mA
Sensing range max.:5 mm ... 155 mm
Light spot size (distance):31 mm (100 mm)
Circuit protection:A, D
Housing material:Glass fiber reinforced ABS plastic, Plastic
Protection class:III
Dimensions (W x H x D):13.6 mm x 45.2 mm x 31.7 mm
Connection type:Connector M12, 4-pin
Enclosure rating:IP 67
Housing design (light emission):Hybrid
Switching output:NPN
Switching mode:Light switching
Switching frequency:200 Hz
Ambient storage temperature:-40 °C ... 70 °C
Type of light:Infrared light
Ambient operating temperature:-25 °C ... 50 °C
Sensing range:5 mm ... 155 mm
Wave length:880 nm
