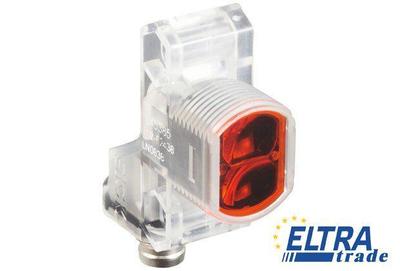

Sick ZT2-P3238

Photoelectric proximity Z-sensors
Sick ZT2-P3238
35.75 EUR

Specification:

Part Number1045489
Items supplied:Mounting nut M18
Sensing range max.:0 mm ... 50 mm
Light source:LED
Power consumption:< 20 mA
Protection class:III
Sensing range:0 mm ... 50 mm
Enclosure rating:IP 67
Ambient operating temperature:-25 °C ... 50 °C
Supply voltage:10 V DC ... 30 V DC
Type of light:Infrared light
Connection type:Connector M8, 4-pin
Ambient storage temperature:-40 °C ... 70 °C
Switching mode:Light switching
Circuit protection:A, D
Output current Imax.:50 mA
Dimensions (W x H x D):13.6 mm x 41.9 mm x 31.7 mm
Thread diameter (housing):M18 x 1
Housing design (light emission):Hybrid
Light spot size (distance):10.5 mm (50 mm)
Switching output:PNP
Switching frequency:200 Hz
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
Housing material:Glass fiber reinforced ABS plastic, Plastic
Wave length:880 nm
