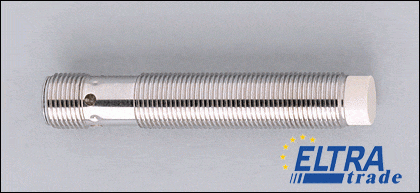

IFM Electronic IFC242 Inductive sensor
Item Number: IFC242
- Inductive sensor
- Metal thread
- M12 x 1
- DC PNP
- gold-plated contacts
- Quick disconnect
- gold-plated contacts
- Sensing range 4 mm [nf]
- Overview
- Datasheet
- Alternative numbers
- Comments
| Working voltage | 10...36 V DC |
| Sensitivity range | 4 mm |
| Joining | M12 connector |
| Switch frequency (Hz) | 700 Hz |
| Dimentions: Length | 70 mm |
| Technical code | IFK3004-BPKG/M/US-104-DPS |
| Electrical scheme | DC PNP |
| Output status signal | LED yellow (4 x 90В°) |
| SKU | AR4EHY8DTX7V58 |
| Name of the product | IFC242 |
| Assembly | non-flush mountable |
| Nominal current rating | 200 mA |
| Temperature of surroundings | -25...70 В°C |
| Output type | normally open |
| Level of protection | IP 68; "Coolant" |
