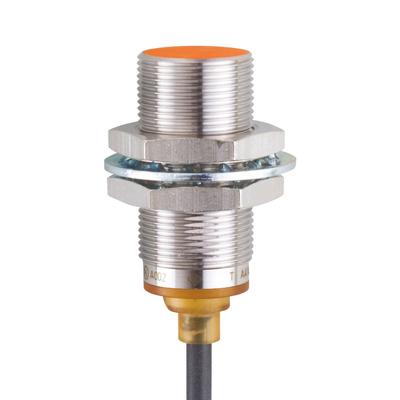

IFM Electronic IGS714

Inductive sensor
IFM Electronic IGS714
One click request
Temperature of surroundings-40...85 В°C
sensitivity range8 mm
Switch frequency (Hz), DC400 Hz
Assemblyflush mountable
Technical codeIGB2008BBRKG/2M/PUR/UP
Housing dimentions: length40 mm
Level of protectionIP 65- IP 66- IP 67- IP 68- IP 69K
Working voltage, DC10...30 V
Display typeswitching status: 1 x LED yellow
Electrical schemePNP/NPN
Output typenormally closed
Link2 m PUR-Cable
Degree of protectionIII
Voltage categoryDC
