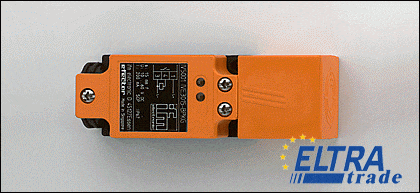

IFM Electronic IV5011 Inductive sensor

IFM Electronic IV5011
Item Number: IV5011
Inductive sensor, Rectangular, plastics, DC PNP, Terminals, Sensing range 30 mm [nf]
120.90
Quantity
-
+
Total price: 120.90
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
Nominal current rating200 mA
Assemblynon-flush mountable
Sensitivity range30 mm
Electrical schemeDC PNP
Temperature of surroundings-25...70 В°C
Output typenormally open
Case material:PBT
SKU3JY3C0UWB22YQG
Name of the productIV5011
Joiningterminals up to 2.5 mmВІ
Level of protectionIP 67
Output status signalLED yellow
Technical codeIVE3030-BPKG
Working voltage10...30 V DC
Switch frequency (Hz)100 Hz
Power rangeLED green
