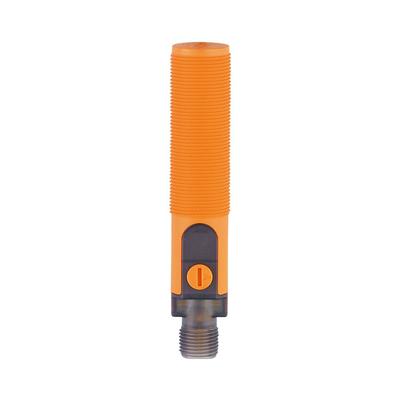

IFM Electronic KG5307

Capacitive sensor
IFM Electronic KG5307
One click request
Factory default settings of sensing spectrum15 mm
Electrical schemePNP
Temperature of surroundings-25...80 В°C
Display typeswitching status: 1 x LED yellow
Used materialsPBT- PC- POM
Technical codeKG-3150NAPKG/SL/1P/US/IO
Working voltage, DC10...30 V
Assemblynon-flush mountable
Housing dimentions: length92.5 mm
Level of protectionIP 65- IP 67- IP 69K
Switch frequency (Hz), DC30 Hz
Degree of protectionIII
Voltage categoryDC
Communication int.IO-Link
Output typenormally closed
LinkM12 Connector
sensitivity range0.5...30 mm
