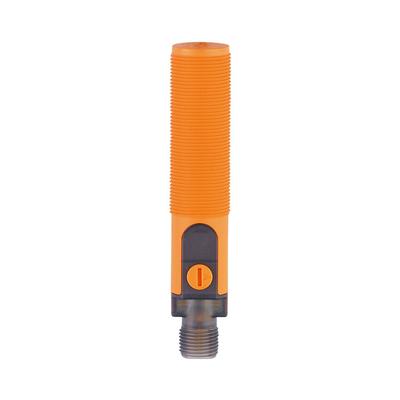

IFM Electronic KG5308

Capacitive sensor
IFM Electronic KG5308
One click request
Level of protectionIP 65- IP 67- IP 69K
Degree of protectionIII
Output typenormally closed
Display typeswitching status: 1 x LED yellow
Used materialsPBT- PC- POM
Assemblynon-flush mountable
Temperature of surroundings-25...80 В°C
Electrical schemeNPN
Switch frequency (Hz), DC30 Hz
Factory default settings of sensing spectrum15 mm
Technical codeKG-3150NBNKG/SL/1P/US/IO
Voltage categoryDC
Working voltage, DC10...30 V
sensitivity range0.5...30 mm
LinkM12 Connector
Communication int.IO-Link
Housing dimentions: length92.5 mm
