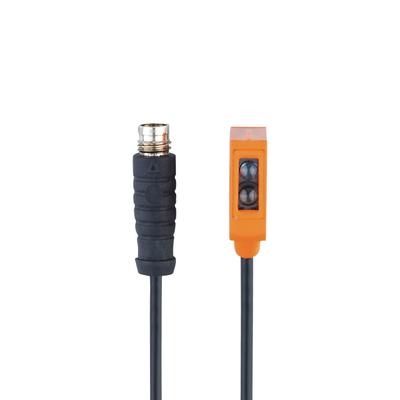

IFM Electronic O8H217 Diffuse reflection sensor with background suppression
Item Number: O8H217
- Diffuse reflection sensor
- Range 1...50 mm
- Operating voltage 10...30 DC V
- 3-wire
- NPN
- 0.3 m PVC-Cable
- M8 Connector
- 0.3 m
- PVC
- Background suppression
- Overview
- Datasheet
- Alternative numbers
- Comments
| Output type | light-on mode |
| SKU | IEL8ID0RTOGV4U |
| Working range | 1...50 mm |
| Type of lens (material) | PMMA |
| Voltage category | DC |
| Electrical scheme | NPN |
| Code | O8H217 |
| Background subduing accessible | yes |
| Working voltage, DC | 10...30 V |
| Light category | red light |
| Link | 0.3 m PVC-Cable- M8 Connector |
| Lens adjustment | side lens |
| Temperature of surroundings | -25...60 В°C |
| Switch frequency (Hz), DC | 1000 Hz |
| Technical code | O8H-HNKG/0,30M/AS/4P |
| Degree of protection | III |
| Ability to adjust the range | no |
| Level of protection | IP 65, IP 67 |
