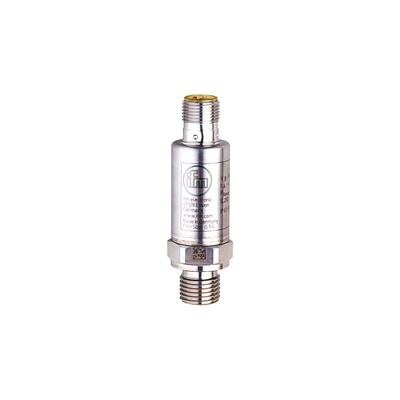

IFM Electronic PT5323 Pressure transmitter

IFM Electronic PT5323
Item Number: PT5323
  • Electronic pressure sensor
  • Operating voltage 8.5...36 DC V
  • 2-wire
  • M12 Connector
  • for industrial applications
Total price: 138.28
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
Working voltage, DC8.5...36 V
LinkM12 Connector
Output typeanalogue
Measuring scope0...60 bar
Average temperature-40...90 В°C
Applyingfor industrial applications
Materials of wetted parts1.4542 (17-4 PH / 630)
Hysteresis fluctuation< В± 0,2 X21
Level of protectionIP 67- IP 69K
Linearity diversion< В± 0,1 (BFSL) / < В± 0,2 (LS) X21
Technical codePT-060-SEG14-A-ZVG/US/ /W
Bursting pressure, minimum900 bar
Voltage categoryDC
Outputs, total ammount1
Degree of protectionIII
Type of output signalanalogue signal
Temperature of surroundings-40...90 В°C
Output of analog current4...20 mA
Long lasting stability< В± 0,1- (per 6 months) X21
Nominal pressure150 bar
