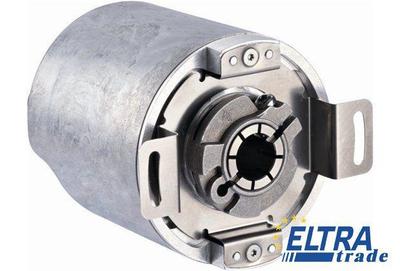

Sick AFM60A-BEIB000S01 AFM60 Absolute encoder

Sick AFM60A-BEIB000S01
Item Number: AFM60A-BEIB000S01
  • High-resolution, 30-bit absolute encoder (18 bit singleturn and 12 bit multiturn)
  • Device Level Ring (DLR functionality)
  • Extensive diagnostics: Min/max values for temperature, position, speed. Operating hours counter, display of flags, alarms and warnings using e.g. a fault header (32 bit)
Total price: 663.08
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick AFM60A-BEIB000S01 is outdated.


Part Number1064851
RPI (requested packet interval):5 ms ... 750 ms
Max. number of steps per revolution:262,144
Max. number of revolutions:4,096
Working temperature range:-30 °C ... 85 °C
Repeat accuracy:0.002 °
Start up torque:0.8 Ncm (20 °C)
Mass:0.2 kg
Initialization time:Ca. 12 s
Power consumption max.:3 W
Measuring step deviation:± 0.002 °
Storage temperature range:-40 °C ... 100 °C, without package
Electrical interface:3 x connector M12, 4-pin, axial
Data transmission rate (baud rate):10 Mbit/s / 100 Mbit/s
Shaft material:Stainless steel
Endless operating functionality:1
DLR (Device Level Ring):1
Operating torque:0.6 Ncm (20 °C)
Encoder profile:0 x 22
Resistance to vibration:30 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
Permissible relative humidity:90 % (condensation of the optical scanning not permitted)
Max. angular acceleration:500,000 rad/s²
Resolution power:262,144 x 4,096
Shaft diameter:12 mm
Error limits:± 0.03 °
Permissible movement axial static/dynamic:± 0.5 mm, ± 0.1 mm
EMC:(according to EN 61000-6-2 and EN 61000-6-3)
Permissible movement radial static/dynamic:± 0.3 mm, ± 0.05 mm
Mechanical interface:Blind hollow shaft
Bus interface:EtherNet/IP IEC 61784-1
MTTFd: mean time to dangerous failure:80 a (EN ISO 13849-1)
Enclosure rating:IP 65 (according to IEC 60529), shaft side, IP 67 (according to IEC 60529), housing side
Maximum operating speed:6,000 /min
Resolution:18 bit x 12 bit
Moment of inertia of the rotor:40 gcm²
Operating voltage range:10 V DC ... 30 V DC
Resistance to shocks:100 g (according to EN 60068-2-27)
Flange material:Aluminum
Bearing lifetime:3.0 x 10^9 revolutions
Housing material:Aluminum
