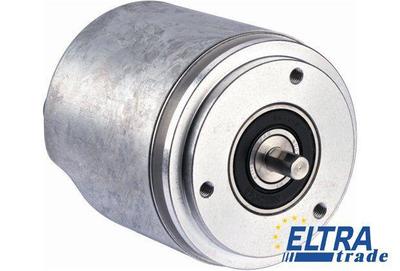

Sick AFS60A-S1NB262144 AFS60 Absolute encoder

Sick AFS60A-S1NB262144
Item Number: AFS60A-S1NB262144
  • High-resolution 30-bit absolute encoder (18-bit singleturn and 12-bit multiturn)
  • Face mount flange, servo flange and blind hollow shaft
  • Connection type: 3 x M12 axial plug
527.56
Quantity
-
+
Total price: 527.56
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1059051
Repeat accuracy:≤ 0.002 °
Max. number of revolutions:1
Mass:0.2 kg
Initialization time:6 s
Shaft material:Stainless steel
Resistance to vibration:30 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
Error limits:≤ 0.03 °
Resolution power:262,144 x 1
RPI (requested packet interval):2 ms ... 750 ms
Electrical interface:PROFINET
Resolution:18 bit
Bus interface:PROFINET IO/ RT Class B
Data transmission rate (baud rate):10 Mbit/s / 100 Mbit/s
Resistance to shocks:100 g, 6 ms (according to EN 60068-2-27)
Operating torque:0.3 Ncm (+20 °C)
EMC:(according to EN 61000-6-2 and EN 61000-6-3)
Start up torque:0.5 Ncm (+20 °C)
Reverse polarity protection:0
Max. number of steps per revolution:262,144
Operating voltage range:10 V DC ... 30 V DC
Storage temperature range:-40 °C ... +100 °C, without package
Moment of inertia of the rotor:6.2 gcm²
Bearing lifetime:3.0 x 10^9 revolutions
Working temperature range:-30 °C ... +85 °C
Maximum operating speed:9,000 Hz
Connection type:3 x connector M12, 4-pin, axial
Shaft diameter:6 mm
Endless operating functionality:0
MTTFd: mean time to dangerous failure:80 a (EN ISO 13849-1)
Flange material:Aluminum
Enclosure rating:IP 65 (according to IEC 60529), shaft side, IP 67 (according to IEC 60529), housing side
Encoder profile:V4.1 class3
Max. angular acceleration:500,000 rad/s²
DLR (Device Level Ring):0
Mechanical interface:Solid shaft, Servo flange
Permissible relative humidity:90 % (condensation of the optical scanning not permitted)
Permissible Load capacity of shaft:40 N (axial), 80 N (radial)
Type of mounting shaft:Solid shaft, servo flange
Measuring step deviation:± 0.002 °
