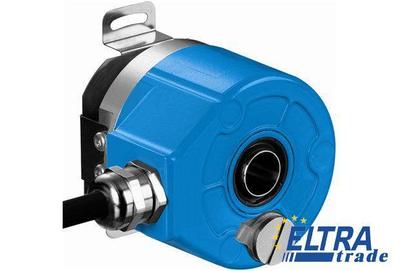

Sick ARS60-ADA04086 ARS60-A Absolute encoder

Sick ARS60-ADA04086
Item Number: ARS60-ADA04086
  • Absolute singleturn encoder
  • Resolution: up to 15 bits (32,768 increments)
  • Electrical interface: SSI with gray code type or gray capped
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick ARS60-ADA04086 is outdated.

Specification:

Part Number1031425
Start up torque:2.2 Ncm
Measuring step deviation:0.005 °, 0.016 °
Permissible relative humidity:90 % (condensation of the optical scanning not permitted)
Max. number of revolutions:1
Electrical interface:Connector M23, 12-pin, radial
Initialization time:80 ms
MTTFd: mean time to dangerous failure:300 a (EN ISO 13849-1)
Measuring step:360 ° /number of lines
Operating power consumption (no load):60 mA
EMC:(according to EN 61000-6-2 and EN 61000-6-3)
Resolution power:4,086 x 1
Operating voltage range:10 V DC ... 32 V DC
Permissible movement axial static/dynamic:± 0.5 mm, ± 0.2 mm
Resistance to shocks:50 g (according to EN 60068-2-27)
Enclosure rating:IP 64 (according to IEC 60529), with mating connector fitted
Repeat accuracy:0.005 °
Shaft diameter:6 mm
8 mm
10 mm
12 mm
14 mm
15 mm 1/4 "
3/8 "
1/2 "
Resistance to vibration:20 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
Max. angular acceleration:500,000 rad/s²
Permissible movement radial static/dynamic:± 0.3 mm, ± 0.1 mm
Maximum operating speed:3,000 /min
Max. number of steps per revolution:4,086
Working temperature range:-20 °C ... 85 °C
Operation of zero-set:≥ 100 ms
Storage temperature range:-40 °C ... 100 °C
Operating torque:1.6 Ncm
Error limits:0.035 ° (binary number of steps)
0.046 ° (non-binary number of steps)
Mass:0.3 kg
Mechanical interface:Through hollow shaft
Bearing lifetime:3.6 x 10^9 revolutions
