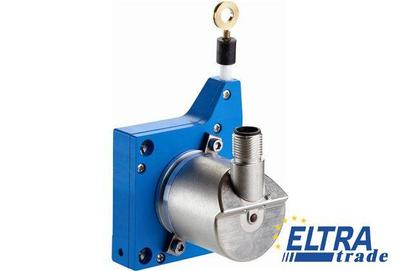

Sick BCG05-A1NM0155 Wire Draw (Rope) Encoders

Sick BCG05-A1NM0155
Item Number: BCG05-A1NM0155
  • Measuring lengths of 1.25 m, 3 m, 5 m, and 10 m.
  • Very small dimension (55 ... 190 mm)
  • Modular system: encoder type, measuring length, and interface can be selected
598.37
Quantity
-
+
Total price: 598.37
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick BCG05-A1NM0155 is outdated.

Specification:

Part Number1068864
Measuring wire diameter:0.45 mm
Operating speed:4 m/s
Enclosure rating mechanic:IP 50
Electrical interface:SSI
Mass (measuring wire):0.58 g/m
Connection type:Universal
MTTFd: mean time to dangerous failure:270 a
Number of steps per revolution:8,192
Working temperature range (combination):Wird definiert durch den höheren mininalen und niedrigeren maximalen Wert des Arbeitstemperaturbereichs von Encoder und Mechanik
Mass (mechanics):80 g
Working temperature range (mechanics):-30 °C ... +70 °C
SET (electronic adjustment):H-active L = 0 - 3 V, H = 4.0 - Us V
Mounted encoder:AHM36 SSI
Repeatability:≤ 0.2 mm
Housing material, wire draw mechanism:Plastic, Noryl
Working temperature range (encoder):-30 °C ... +70 °C
Encoder:Absolute encoders
Length of wire pulled out per revolution:150 mm
Mass (including encoder):200 g
Part number encoder:1068328
Resistance to vibration:20 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
Code type:Gray, binary
Supply voltage:4.5 V ... 32 V
Actual length of cable extension:1.45 m
Life of wire draw mechanism:1 million cycles
Spring return force:Ca. 1 N ... ca. 1.4 N
Clock frequency:2 MHz
Resistance to shocks:100 g, 6 ms (according to EN 60068-2-27)
Linearity:≤ ± 2 mm
EMC:(according to EN 61000-6-2 and EN 61000-6-3)
Relative humidity / Condensation:90 % (condensation of the optical scanning not permitted)
Initialization time:50 ms
Measuring range:0 m ... 1.25 m
Wire acceleration:10 m/s²
Part number mechanic:5324019
Interface signals:Clock +, Clock -, Data +, Data-
Power consumption:1.5 W
Hysteresis:≤ 0.4 mm
Enclosure rating encoder:IP 66 / IP 67 (according to IEC 60529), housing side, IP 66 / IP 67 (according to IEC 60529), shaft side
Measuring wire material:Highly flexible stranded steel 1.4401 stainless steel V4A
Resolution (wire draw + encoder):0.02 mm
Mounted mechanic:MRA-G055-101D4
