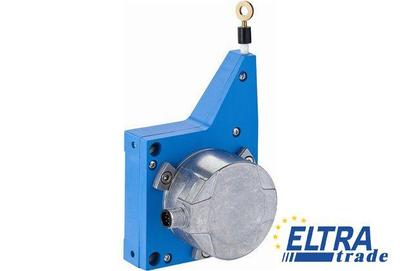

Sick BCG08-A1CM0336 Wire Draw (Rope) Encoders

Sick BCG08-A1CM0336
Item Number: BCG08-A1CM0336
  • Measuring lengths of 1.25 m, 3 m, 5 m, and 10 m.
  • Very small dimension (55 ... 190 mm)
  • Modular system: encoder type, measuring length, and interface can be selected
692.75
Quantity
-
+
Total price: 692.75
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1054131
Actual length of cable extension:3.2 m
Resistance to shocks:70 g, 6 ms (according to EN 60068-2-27)
Relative humidity / Condensation:90 % (condensation of the optical scanning not permitted)
Working temperature range (encoder):-30 °C ... +70 °C, with AFM60B, 0 °C ... +70 °C, with AFM60E
Resolution (wire draw + encoder):0.03 mm
Mass (measuring wire):1.2 g/m
MTTFd: mean time to dangerous failure:250 a
Working temperature range (combination):Wird definiert durch den höheren mininalen und niedrigeren maximalen Wert des Arbeitstemperaturbereichs von Encoder und Mechanik
Connection type:Male connector M12, 8-pin, radial
Initialization time:Ca. 50 ms
SET (electronic adjustment):Via SET cable
Clock frequency:1 MHz
2 MHz
Part number mechanic:5322778
Encoder:Absolute encoders
Number of steps per revolution:8,192
Mounted encoder:AFM60 SSI
Part number encoder:1037863
Length of wire pulled out per revolution:230 mm
Spring return force:Ca. 5 N ... ca. 6.3 N
Measuring wire diameter:0.55 mm
Resistance to vibration:30 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
Mounted mechanic:MRA-G080-103D3
Enclosure rating mechanic:IP 50
Electrical interface:SSI
Enclosure rating encoder:IP 67
Housing material, wire draw mechanism:Plastic, Noryl
Mass (mechanics):250 g
Code type:Gray
Wire acceleration:10 m/s²
Linearity:≤ ± 2 mm
Measuring range:0 m ... 3 m
Mass (including encoder):510 g
Measuring wire material:Highly flexible stranded steel 1.4401 stainless steel V4A
Life of wire draw mechanism:1 million cycles
Hysteresis:≤ 0.4 mm
Working temperature range (mechanics):-30 °C ... +70 °C
Repeatability:≤ 0.2 mm
Operating speed:4 m/s
EMC:(according to EN 61000-6-2 and EN 61000-6-3)
Power consumption:0.7 W
Supply voltage:4.5 V ... 32 V
