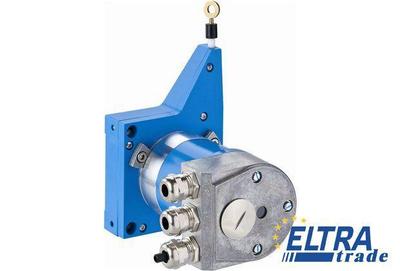

Sick BCG08-D1HM0336 Wire Draw (Rope) Encoders

Sick BCG08-D1HM0336
Item Number: BCG08-D1HM0336
  • Measuring lengths of 1.25 m, 3 m, 5 m, and 10 m.
  • Very small dimension (55 ... 190 mm)
  • Modular system: encoder type, measuring length, and interface can be selected
Total price: 845.65
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1061027
Protocol:DeviceNet Specification Release 2.0
Working temperature range (encoder):-20 °C ... +70 °C
Operating speed:4 m/s
Resistance to shocks:100 g, 6 ms (according to EN 60068-2-27)
Measuring wire diameter:0.55 mm
Part number encoder:1030018
Length of wire pulled out per revolution:230 mm
Mass (including encoder):840 g
Part number mechanic:5322778
Repeatability:≤ 0.2 mm
Working temperature range (mechanics):-30 °C ... +70 °C
EMC:(according to EN 61000-6-2 and EN 61000-6-3)
Working temperature range (combination):Wird definiert durch den höheren mininalen und niedrigeren maximalen Wert des Arbeitstemperaturbereichs von Encoder und Mechanik
Mounted encoder:ATM60 DeviceNet
Spring return force:Ca. 5 N ... ca. 6.3 N
Number of steps per revolution:8,192
Hysteresis:≤ 0.4 mm
Actual length of cable extension:3.2 m
Bus termination:Via DIP switches
Enclosure rating encoder:IP 67
SET (electronic adjustment):Via PRESET push button or protocol
Measuring wire material:Highly flexible stranded steel 1.4401 stainless steel V4A
Supply voltage:10 V ... 32 V
Linearity:≤ ± 2 mm
Power consumption:2 W
Address setting:0 ... 63, DIP-switches or protocol
Encoder profile:Generic Profile
Measuring range:0 m ... 3 m
Mounted mechanic:MRA-G080-103D3
Mass (measuring wire):1.2 g/m
Connection type:Bus adaptor with cable screw fixings or connector
Initialization time:Ca. 12 s
Electrical interface:DeviceNet
Enclosure rating mechanic:IP 50
Relative humidity / Condensation:98 % (condensation of the optical scanning not permitted)
Resistance to vibration:20 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
Resolution (wire draw + encoder):0.03 mm
Life of wire draw mechanism:1 million cycles
Housing material, wire draw mechanism:Plastic, Noryl
MTTFd: mean time to dangerous failure:150 a
Encoder:Absolute encoders
Mass (mechanics):250 g
Wire acceleration:10 m/s²
