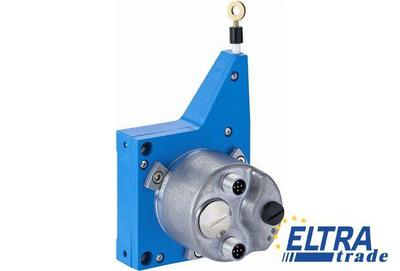

Sick BCG08-P1BM0336 Wire Draw (Rope) Encoders

Sick BCG08-P1BM0336
Item Number: BCG08-P1BM0336
  • Measuring lengths of 1.25 m, 3 m, 5 m, and 10 m.
  • Very small dimension (55 ... 190 mm)
  • Modular system: encoder type, measuring length, and interface can be selected
728.62
Quantity
-
+
Total price: 728.62
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1052618
Part number encoder:1051018
Working temperature range (combination):Wird definiert durch den höheren mininalen und niedrigeren maximalen Wert des Arbeitstemperaturbereichs von Encoder und Mechanik
Resistance to shocks:80 g, 6 ms (according to EN 60068-2-27)
Measuring range:0 m ... 3 m
Working temperature range (encoder):-10 °C ... +70 °C
Actual length of cable extension:3.2 m
Working temperature range (mechanics):-30 °C ... +70 °C
Resolution (wire draw + encoder):0.03 mm
Bus termination:Via DIP switches
Measuring wire material:Highly flexible stranded steel 1.4401 stainless steel V4A
Mounted encoder:A3M60
Number of steps per revolution:8,192
Measuring wire diameter:0.55 mm
Linearity:≤ ± 2 mm
Encoder profile:Encoder profile version 1.1 class 1 and class 2
Mounted mechanic:MRA-G080-103D3
Electrical interface:PROFIBUS
Wire acceleration:10 m/s²
Housing material, wire draw mechanism:Plastic, Noryl
Operating speed:4 m/s
Life of wire draw mechanism:1 million cycles
Address setting:0 ... 127, DIP switch
Repeatability:≤ 0.2 mm
Relative humidity / Condensation:95 % (condensation of the optical scanning not permitted)
Connection type:Connector 3 x M12, 5-pin, axial
MTTFd: mean time to dangerous failure:60 a
Enclosure rating encoder:IP 67
Encoder:Absolute encoders
Mass (measuring wire):1.2 g/m
Resistance to vibration:30 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
Spring return force:Ca. 5 N ... ca. 6.3 N
Mass (mechanics):250 g
SET (electronic adjustment):Via PRESET push button or protocol
Length of wire pulled out per revolution:230 mm
EMC:(according to EN 61000-6-2 and EN 61000-6-3)
Hysteresis:≤ 0.4 mm
Part number mechanic:5322778
Mass (including encoder):530 g
Supply voltage:10 V ... 32 V
Protocol:PROFIBUS DP V0
Initialization time:Ca. 1 s
Enclosure rating mechanic:IP 50
Power consumption:1.5 W
