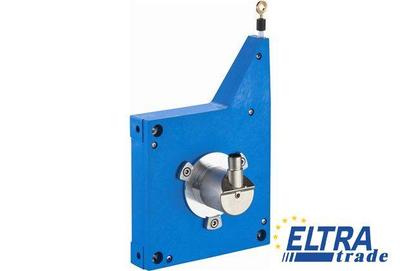

Sick BCG13-A1NM0521 Wire Draw (Rope) Encoders

Sick BCG13-A1NM0521
Item Number: BCG13-A1NM0521
  • Measuring lengths of 1.25 m, 3 m, 5 m, and 10 m.
  • Very small dimension (55 ... 190 mm)
  • Modular system: encoder type, measuring length, and interface can be selected
Total price: 765.42
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick BCG13-A1NM0521 is outdated.


Part Number1068868
Connection type:Universal
Part number mechanic:5322779
Mass (mechanics):800 g
Hysteresis:≤ 0.4 mm
MTTFd: mean time to dangerous failure:270 a
Wire acceleration:4 m/s²
Interface signals:Clock +, Clock -, Data +, Data-
Measuring wire diameter:0.55 mm
EMC:(according to EN 61000-6-2 and EN 61000-6-3)
Relative humidity / Condensation:90 % (condensation of the optical scanning not permitted)
Clock frequency:2 MHz
Measuring range:0 m ... 5 m
Repeatability:≤ 0.2 mm
Code type:Gray, binary
SET (electronic adjustment):H-active L = 0 - 3 V, H = 4.0 - Us V
Enclosure rating encoder:IP 66 / IP 67 (according to IEC 60529), housing side, IP 66 / IP 67 (according to IEC 60529), shaft side
Enclosure rating mechanic:IP 50
Spring return force:Ca. 4.5 N ... ca. 7 N
Initialization time:50 ms
Resistance to vibration:20 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
Life of wire draw mechanism:1 million cycles
Working temperature range (combination):Wird definiert durch den höheren mininalen und niedrigeren maximalen Wert des Arbeitstemperaturbereichs von Encoder und Mechanik
Mass (measuring wire):1.2 g/m
Measuring wire material:Highly flexible stranded steel 1.4401 stainless steel V4A
Power consumption:1.5 W
Supply voltage:4.5 V ... 32 V
Encoder:Absolute encoders
Operating speed:4 m/s
Part number encoder:1068330
Length of wire pulled out per revolution:385 mm
Actual length of cable extension:5.2 m
Resistance to shocks:100 g, 6 ms (according to EN 60068-2-27)
Electrical interface:SSI
Working temperature range (mechanics):-30 °C ... +70 °C
Housing material, wire draw mechanism:Plastic, Noryl
Mounted encoder:AHM36 SSI
Working temperature range (encoder):-30 °C ... +70 °C
Linearity:≤ ± 2 mm
Resolution (wire draw + encoder):0.05 mm
Number of steps per revolution:8,192
Mounted mechanic:MRA-G130-105D3
Mass (including encoder):920 g
