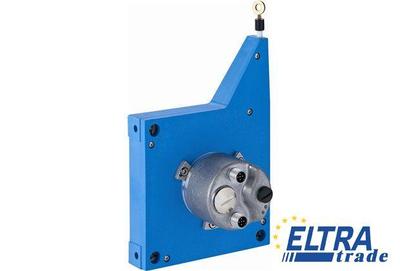

Sick BCG13-P1BM0521 Wire Draw (Rope) Encoders

Sick BCG13-P1BM0521
Item Number: BCG13-P1BM0521
  • Measuring lengths of 1.25 m, 3 m, 5 m, and 10 m.
  • Very small dimension (55 ... 190 mm)
  • Modular system: encoder type, measuring length, and interface can be selected
823.93
Quantity
-
+
Total price: 823.93
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1052619
Resistance to vibration:30 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
Resolution (wire draw + encoder):0.05 mm
Part number encoder:1051018
Power consumption:1.5 W
Bus termination:Via DIP switches
Working temperature range (mechanics):-30 °C ... +70 °C
Supply voltage:10 V ... 32 V
Encoder:Absolute encoders
Connection type:Connector 3 x M12, 5-pin, axial
Mounted encoder:A3M60
Mass (including encoder):1.08 kg
Enclosure rating encoder:IP 67
Address setting:0 ... 127, DIP switch
Electrical interface:PROFIBUS
Measuring wire diameter:0.55 mm
Housing material, wire draw mechanism:Plastic, Noryl
Linearity:≤ ± 2 mm
Operating speed:4 m/s
MTTFd: mean time to dangerous failure:60 a
Mounted mechanic:MRA-G130-105D3
Part number mechanic:5322779
Encoder profile:Encoder profile version 1.1 class 1 and class 2
Actual length of cable extension:5.2 m
Mass (mechanics):800 g
Protocol:PROFIBUS DP V0
Enclosure rating mechanic:IP 50
Number of steps per revolution:8,192
Measuring wire material:Highly flexible stranded steel 1.4401 stainless steel V4A
Measuring range:0 m ... 5 m
Resistance to shocks:80 g, 6 ms (according to EN 60068-2-27)
Hysteresis:≤ 0.4 mm
Wire acceleration:4 m/s²
Initialization time:Ca. 1 s
Life of wire draw mechanism:1 million cycles
SET (electronic adjustment):Via PRESET push button or protocol
Working temperature range (combination):Wird definiert durch den höheren mininalen und niedrigeren maximalen Wert des Arbeitstemperaturbereichs von Encoder und Mechanik
Spring return force:Ca. 4.5 N ... ca. 7 N
Relative humidity / Condensation:95 % (condensation of the optical scanning not permitted)
Working temperature range (encoder):-10 °C ... +70 °C
Repeatability:≤ 0.2 mm
EMC:(according to EN 61000-6-2 and EN 61000-6-3)
Mass (measuring wire):1.2 g/m
Length of wire pulled out per revolution:385 mm
