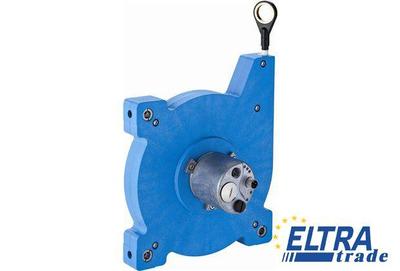

Sick BCG19-I1BM1099 Wire Draw (Rope) Encoders

Sick BCG19-I1BM1099
Item Number: BCG19-I1BM1099
  • Measuring lengths of 1.25 m, 3 m, 5 m, and 10 m.
  • Very small dimension (55 ... 190 mm)
  • Modular system: encoder type, measuring length, and interface can be selected
1151.44
Quantity
-
+
Total price: 1151.44
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick BCG19-I1BM1099 is outdated.

Specification:

Part Number1061044
Relative humidity / Condensation:90 % (condensation of the optical scanning not permitted)
Supply voltage:10 V ... 30 V
Operating speed:4 m/s
Length of wire pulled out per revolution:555 mm
Housing material, wire draw mechanism:Plastic, Noryl
Mounted mechanic:MRA-G190-110D3
Encoder:Absolute encoders
Connection type:Connector 3 x M12, 4-pin, axial
Resolution (wire draw + encoder):0.002 mm
Encoder profile:0 x 22
Wire acceleration:8 m/s²
Mass (including encoder):2.1 kg
Address setting:Via DHCP / DEC-switches
Part number encoder:1055331
Part number mechanic:5326242
Working temperature range (encoder):-30 °C ... +70 °C
Mass (measuring wire):1.2 g/m
Power consumption:3 W
Working temperature range (combination):Wird definiert durch den höheren mininalen und niedrigeren maximalen Wert des Arbeitstemperaturbereichs von Encoder und Mechanik
Measuring wire diameter:0.55 mm
Measuring wire material:Highly flexible stranded steel 1.4401 stainless steel V4A
Life of wire draw mechanism:1 million cycles
Spring return force:Ca. 9 N ... ca. 12 N
Actual length of cable extension:10.2 m
Measuring range:0 m ... 10 m
MTTFd: mean time to dangerous failure:80 a
Enclosure rating mechanic:IP 50
Initialization time:Ca. 12 s
Enclosure rating encoder:IP 67
Number of steps per revolution:262,144
Electrical interface:EtherNet/IP
EMC:(according to EN 61000-6-2 and EN 61000-6-3)
Working temperature range (mechanics):-30 °C ... +70 °C
Linearity:≤ ± 2 mm
Resistance to shocks:100 g, 6 ms (according to EN 60068-2-27)
Protocol:EtherNet/IP IEC 61784-1
Resistance to vibration:30 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
Repeatability:≤ 0.2 mm
Hysteresis:≤ 0.4 mm
Mounted encoder:AFM60 EtherNet/IP
Mass (mechanics):1.9 kg
SET (electronic adjustment):Via PRESET push button or protocol
