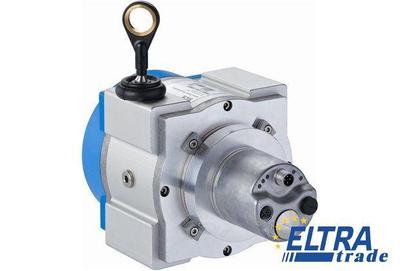

Sick BTF13-E1BM0599 Wire Draw (Rope) Encoders

Sick BTF13-E1BM0599
Item Number: BTF13-E1BM0599
  • Absolute wire draw encoders
  • Modular measuring system with a wide selection of interfaces/measuring lengths
  • Measuring lengths: 2 m ... 50 m
1395.88
Quantity
-
+
Total price: 1395.88
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick BTF13-E1BM0599 is outdated.

Specification:

Part Number1060988
Mass (measuring wire):7.1 g/m
Housing material, wire draw mechanism:Aluminum (anodised), plastic
Resistance to vibration:30 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
Repeatability:≤ 1 mm
Connection type:Connector 3 x M12, 4-pin, axial
Hysteresis:≤ 2 mm
SET (electronic adjustment):Via PRESET push button or protocol
Resolution (wire draw + encoder):0.001 mm
Operating speed:4 m/s
Supply voltage:10 V ... 30 V
Resistance to shocks:100 g, 6 ms (according to EN 60068-2-27)
EMC:(according to EN 61000-6-2 and EN 61000-6-3)
Initialization time:Ca. 12 s
Relative humidity / Condensation:90 % (condensation of the optical scanning not permitted)
Mounted mechanic:MRA-F130-105D2
Working temperature range (mechanics):-30 °C ... +70 °C
Protocol:EtherCAT, CoE (CiA DS-301)
Encoder:Absolute encoders
Mass (mechanics):2.8 kg
Enclosure rating mechanic:IP 64
Actual length of cable extension:5.2 m
Measuring range:0 m ... 5 m
Wire acceleration:70 m/s²
Enclosure rating encoder:IP 67
Measuring wire diameter:1.35 mm
MTTFd: mean time to dangerous failure:80 a
Number of steps per revolution:262,144
Working temperature range (encoder):-30 °C ... +70 °C
Mounted encoder:AFM60 EtherCAT
Part number encoder:1059061
Life of wire draw mechanism:1 million cycles
Part number mechanic:6028626
Power consumption:3 W
Electrical interface:EtherCAT®
Working temperature range (combination):Wird definiert durch den höheren mininalen und niedrigeren maximalen Wert des Arbeitstemperaturbereichs von Encoder und Mechanik
Measuring wire material:Highly flexible stranded steel 1.4401 stainless steel V4A
Linearity:≤ ± 2 mm
Encoder profile:CiA DS-406
Spring return force:15 N ... 20 N
Mass (including encoder):3 kg
Length of wire pulled out per revolution:334.1 mm
