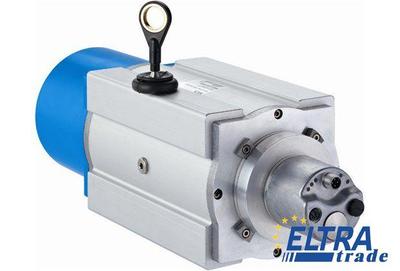

Sick BTF13-I1BM3099 Wire Draw (Rope) Encoders

Sick BTF13-I1BM3099
Item Number: BTF13-I1BM3099
  • Absolute wire draw encoders
  • Modular measuring system with a wide selection of interfaces/measuring lengths
  • Measuring lengths: 2 m ... 50 m
Total price: 2004.63
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick BTF13-I1BM3099 is outdated.


Part Number1061005
Resistance to shocks:100 g, 6 ms (according to EN 60068-2-27)
Mounted encoder:AFM60 EtherNet/IP
Number of steps per revolution:262,144
Mass (measuring wire):2.6 g/m
Actual length of cable extension:30.2 m
Housing material, wire draw mechanism:Aluminum (anodised), plastic
Working temperature range (combination):Wird definiert durch den höheren mininalen und niedrigeren maximalen Wert des Arbeitstemperaturbereichs von Encoder und Mechanik
Mass (mechanics):6.2 kg
Supply voltage:10 V ... 30 V
Length of wire pulled out per revolution:332.4 mm
Enclosure rating encoder:IP 67
Power consumption:3 W
SET (electronic adjustment):Via PRESET push button or protocol
Measuring wire material:Highly flexible stranded steel 1.4401 stainless steel V4A
Working temperature range (mechanics):-30 °C ... +70 °C
Mass (including encoder):6.4 kg
Measuring wire diameter:0.81 mm
Mounted mechanic:MRA-F130-130D1
Repeatability:≤ 2 mm
Hysteresis:≤ 5 mm
Encoder:Absolute encoders
Operating speed:4 m/s
Encoder profile:0 x 22
Initialization time:Ca. 12 s
Wire acceleration:15 m/s²
Resistance to vibration:30 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
Resolution (wire draw + encoder):0.001 mm
Address setting:Via DHCP / DEC-switches
EMC:(according to EN 61000-6-2 and EN 61000-6-3)
Part number mechanic:6028629
Life of wire draw mechanism:1 million cycles
Relative humidity / Condensation:90 % (condensation of the optical scanning not permitted)
Electrical interface:EtherNet/IP
Protocol:EtherNet/IP IEC 61784-1
MTTFd: mean time to dangerous failure:80 a
Connection type:Connector 3 x M12, 4-pin, axial
Working temperature range (encoder):-30 °C ... +70 °C
Linearity:≤ ± 2 mm
Enclosure rating mechanic:IP 64
Spring return force:10 N ... 20 N
Part number encoder:1055331
Measuring range:0 m ... 30 m
