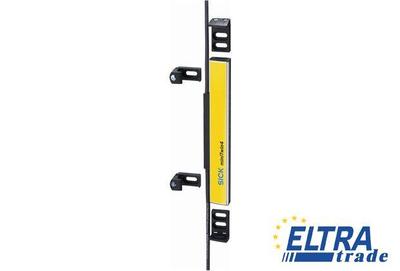

Sick C4MT-10824ABB04FE0 Light curtains

Sick C4MT-10824ABB04FE0
Item Number: C4MT-10824ABB04FE0
  • Type 4 (IEC 61496), SIL3 (IEC 61508), PL e (EN ISO 13849)
  • Compact cross section (15 mm x 32 mm) with no dead zones
  • Cascadable twin stick design - sender and receiver in a single housing
Total price: 1305.83
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1207297
Ambient operating temperature:-20 °C ... +55 °C
Automatic beam coding:+
Display elements:LEDs
Scanning range:0 m ... 4 m
Housing material:Aluminum alloy ALMGSI 0.5
Switching voltage LOW:2 V DC
Switching voltage HIGH:24 V DC (VS - 2.25 V DC ... VS)
Air humidity:15 % ... 95 %, non-condensing
Resolution:24 mm
Restart interlock:+
Safe SICK device communication via EFI/SDL:-
Conductor cross-section:0.34 mm²
Type of output:PNP semiconductors, short-circuit protected, cross-circuit monitored
Protection class:III (EN 61140)
Enclosure rating:IP 65 (EN 60529)
Typical range:0 m ... 5 m
Housing cross-section (incl. system connection):15 mm x 32 mm
External device monitoring (delivery status):Deactivated
Cable length:700 mm
Power consumption:≤ 3 A
Switching current:300 mA
Ripple:≤ 10 %
External device monitoring (EDM):+
Storage temperature:-25 °C ... +70 °C
Performance level:PL e (EN ISO 13849)
Connection type:Male connector M12, 5-pin
Weight:380 g
Restart interlock (delivery status):Deactivated
TM (mission time):20 a (EN ISO 13849)
Response time:≤ 13 ms
Permitted cable length:≤ 20 m
Category:Category 4 (EN ISO 13849)
Safe state in the event of a fault:At least one OSSD is in the OFF state.
PFHd:Cascaded systems: 1.3  1E-08 (EN ISO 13849)
Connection type extension connection:Female connector M12, 5-pin
Vibration resistance:5 g, 10 Hz ... 55 Hz (EN 60068-2-6)
Safety integrity level:SIL3 (IEC 61508)
SILCL3 (EN 62061)
Configuration method:Hard wired
Synchronization:Optical, without separate synchronization
Type:Type 4 (IEC 61496)
Beam coding:+
Integration via Flexi Soft safety controller:CANopenDeviceNetEtherCATEtherNet/IPModbus TCPPROFIBUS DPPROFINET
Shock resistance:10 g, 16 ms (EN 60068-2-27)
Protective field height:1,080 mm
Supply voltage:24 V DC (19.2 V DC ... 28.8 V DC)
