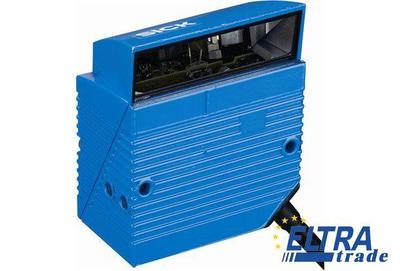

Sick CLV612-C2000 Bar code scanners

Sick CLV612-C2000
Item Number: CLV612-C2000
  • Optimized reading field for intralogistics applications
  • Available with SICK CAN sensor network
  • Configuration with SOPAS, the configuration tool for all new SICK products
Price on Request
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick CLV612-C2000 is outdated.


Part Number1066272
Function (Serial (RS-232)):Host, AUX
Ambient operating temperature:0 °C ... +40 °C
No. of codes per reading interval:1 ... 50 (auto-discriminating)
Front screen:Glass
Data transmission rate (Serial (RS-232)):2,400 Baud ... 115 kBaud, AUX: 57.6 kBaud
CAN bus:+
Enclosure rating:IP 65 (DIN 40 050)
Storage temperature:-20 °C ... +70 °C
Optical indicators:1 RGB LED (multifunctional)
Housing:Die-cast aluminum
Shock resistance:EN 60068-2-27 (2009-05)
Dimensions:61 mm x 66 mm x 38 mm
Code resolution:0.1 mm ... 0.2 mm
Focus:Fixed focus
No. of codes per scan:1 ... 10 (Standard decoder), 1 ... 6 (SMART620)
Weight:265 g, with connecting cable
Reading pulse:Auto pulse, CAN, Non-powered, Switching inputs, Serial interface
Acoustic indicators:Beeper/buzzer (can be switched off, can be allocated as a result indication function)
Bar code types:Interleaved 2 of 5, All current code types, Codabar, Code 128, Code 39, Code 93, UPC / GTIN / EAN
Laser class:2 (EN 60825-1 (2008-05))
Ambient light safety:2,000 lx, on bar code
Field of view:≤ 50 °
Electrical connection:1 x 15-pin D-Sub HD male connector (0.9 m)
No. of characters per reading interval:1,500, 500 (for multiplexer function in CAN operation)
Protocol (CAN bus):CSN (SICK CAN Sensor Network)
Power consumption:2.8 W
Print ratio:2:1 ... 3:1
Light source:Visible red light (655 nm)
Scanning frequency:400 Hz ... 1,000 Hz
Connection type:Cable
MTBF:40,000 h
Electromagnetic compatibility (EMC):EN 61000-6-4 (2007-01) + A1 (2011) / EN 61000-6-2 (2005-08)
Data transmission rate (CAN bus):20 kbit/s ... 1 Mbit/s
Vibration resistance:EN 60068-2-6 (2008-02)
Permissible relative humidity:90 %, non-condensing
Function (CAN bus):SICK CAN sensor network (Master/Slave, Multiplexer/Server)
Protection class:III (VDE 0106/IEC 1010-1)
Operating voltage:10 V DC ... 30 V DC
Version:Short Range
Configuration software:SOPAS ET
Reading field:Side (105 °)
Housing color:Light blue (RAL 5012)
No. of multiple readings:1 ... 99
Serial (RS-232):+
Reading distance:28 mm ... 78 mm
Switching outputs:4 (“Result 1”, “Result 2”, 2 outputs via optional parameter storage CMC600 in CDB620/CDM420)
Scanner design:Line scanner
Bar code print contrast (PCS):≥ 60 %
Switching inputs:4 (“Sensor 1”, “Sensor 2”, 2 inputs via optional parameter storage CMC600 in CDB620/CDM420)
Items supplied:Single scanner
