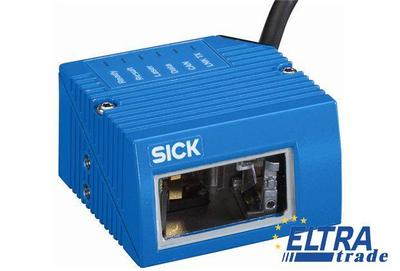

Sick CLV622-1000 Bar code scanners

Sick CLV622-1000
Item Number: CLV622-1000
  • CAN, Ethernet TCP/IP, PROFINET, and EtherNet/IP available on board, no additional gateway needed (depending on variant)
  • SMART620 code reconstruction technology
  • Flexible sorting, filtering, and logical functions
1471.43
Quantity
-
+
Total price: 1471.43
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1041794
Electromagnetic compatibility (EMC):EN 61000-6-3 (2001-10) / EN 61000-6-2:2005
Protocol (Ethernet):PROFINET Dual Port (optional via external connection module CDF600-2), EtherCAT (optional via external connection module CDF600)
Optical indicators:6 LEDs (Ready, Result, laser, Data, CAN, LNK TX)
Scanning frequency:400 Hz ... 1,200 Hz
Remark (PROFIBUS DP):Optional via external connection module (CDF600-2)
Ethernet:-
No. of multiple readings:1 ... 99
Remark (DeviceNet):Optional via external connection module (CDM + CMF)
Serial (RS-232, RS-422/485):+
Light source:Visible red light (655 nm)
Field of view:≤ 50 °
Reading pulse:Auto pulse, CAN, Non-powered, Switching inputs, Serial interface
Acoustic indicators:Beeper/buzzer (can be switched off, can be allocated as a result indication function)
Storage temperature:-20 °C ... +70 °C
Vibration resistance:EN 60068-2-6 (1995)
Electrical connection:1 x 15-pin D-Sub HD male connector (0.9 m)
Bar code types:Interleaved 2 of 5, All current code types, Codabar, Code 128, Code 39, Code 93, GS1 DataBar, GS1-128 / EAN 128, MSI/Plessey, Pharmacode, Telepen, UPC / GTIN / EAN
Data transmission rate (CAN bus):20 kbit/s ... 1 Mbit/s
No. of codes per scan:1 ... 20 (Standard decoder), 1 ... 6 (SMART620)
Shock resistance:EN 60068-2-27 (1993)
PROFIBUS DP:+
Dimensions:61 mm x 66 mm x 38 mm
Housing color:Light blue (RAL 5012)
Protection class:III (VDE 0106/IEC 1010-1)
Switching inputs:4 (“Sensor 1”, “Sensor 2”, 2 inputs via optional parameter storage CMC600 in CDB620/CDM420)
Bar code print contrast (PCS):≥ 60 %
Focus:Fixed focus
Ambient operating temperature:0 °C ... +40 °C
Function (Serial (RS-232, RS-422/485)):Host, AUX
Power consumption:4.5 W
No. of codes per reading interval:1 ... 50 (auto-discriminating)
Function (CAN bus):SICK CAN sensor network (Master/Slave, Multiplexer/Server)
Print ratio:2:1 ... 3:1
Switching outputs:4 (“Result 1”, “Result 2”, 2 outputs via optional parameter storage CMC600 in CDB620/CDM420)
MTBF:40,000 h
Housing:Die-cast aluminum
No. of characters per reading interval:1,500, 500 (for multiplexer function in CAN operation)
Front screen:Glass
Laser class:2 (EN 60825-1 (A2:2001-03))
Remark (Serial (RS-232, RS-422/485)):AUX (only RS-232)
Note on use:For Ethernet connection please use an Ethernet version of CLV6xx
Connection type:Cable
Configuration software:SOPAS ET
Weight:225 g, with connecting cable
CAN bus:+
Code resolution:0.15 mm ... 0.5 mm
Enclosure rating:IP 65 (DIN 40 050)
Version:Short Range
Permissible relative humidity:90 %, non-condensing
Operating voltage:10 V DC ... 30 V DC
Data transmission rate (Serial (RS-232, RS-422/485)):2,400 Baud ... 115 kBaud, AUX: 57.6 kBaud
Reading distance:55 mm ... 200 mm
DeviceNet:+
Raster height, number of lines, at distance:15 mm, 8, 200 mm
Scanner design:Raster scanner
Ambient light safety:2,000 lx, on bar code
Reading field:Front
Protocol (CAN bus):CANopen, CSN (SICK CAN Sensor Network)
