Sick CLV631-0831S01 Bar code scanners

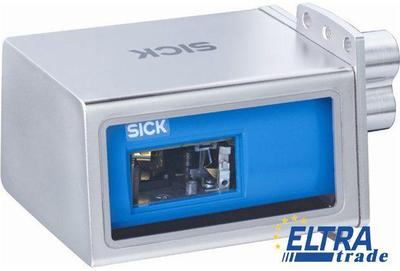

Sick CLV631-0831S01
Item Number: CLV631-0831S01
  • Integrated pushbuttons for auto setup and reading diagnostics
  • Integrated LED bar graph
  • CAN, Ethernet TCP/IP, PROFINET, and EtherNet/IP available on board, no additional gateway needed (depending on variant)
Total price: 2287.77
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1062070
Data transmission rate (Ethernet):10/100 Mbit
Ambient operating temperature:0 °C ... +40 °C
Protection class:III (EN 61140)
Remark (PROFIBUS DP):Optional via external connection module (CDF600-2)
Data transmission rate (Serial (RS-232, RS-422/485)):2,400 Baud ... 115 kBaud, AUX: 57.6 kBaud
Storage temperature:-20 °C ... +70 °C
Electrical connection:2 x M12 cylindrical connectors (1 x 17-pin male connector, 4-pin female connector)
Remark (DeviceNet):Optional via external connection module (CDM + CMF)
Operating voltage:18 V DC ... 30 V DC
Scanner design:Line scanner
Shock resistance:EN 60068-2-27 (1993)
Light source:Visible red light (655 nm)
Power consumption:5 W
Reading distance:95 mm ... 430 mm
Weight:890 g, without connecting cable
MTBF:40,000 h
Electromagnetic compatibility (EMC):EN 61000-6-3 (2001-10) / EN 61000-6-2:2005
Dimensions:85 mm x 154 mm x 84 mm
Remark (Serial (RS-232, RS-422/485)):AUX (only RS-232)
Code resolution:0.25 mm ... 0.5 mm
Switching inputs:4 (“Sensor 1”, “Sensor 2”, 2 inputs via optional CMC600 in CDB650)
Vibration resistance:EN 60068-2-6 (1995)
Permissible relative humidity:90 %, non-condensing
Field of view:≤ 50 °
Print ratio:2:1 ... 3:1
Version:Mid Range
Housing:Stainless steel
Function (Serial (RS-232, RS-422/485)):Host, AUX
Reading pulse:Auto pulse, CAN, Non-powered, Switching inputs, Serial interface
Protocol (CAN bus):CANopen, CSN (SICK CAN Sensor Network)
No. of codes per scan:1 ... 20 (Standard decoder), 1 ... 6 (SMART decoder)
Reading field:Front
Configuration software:SOPAS ET
Data transmission rate (CAN bus):20 kbit/s ... 1 Mbit/s
Housing color:Stainless steel (unpainted)
Bar code print contrast (PCS):≥ 60 %
Ambient light safety:2,000 lx, on bar code
No. of characters per reading interval:5,000, 500 (for multiplexer function in CAN operation)
Enclosure rating:IP 69K (DIN 40 050, part 9)
Laser class:2 (EN 60825-1 (A2:2001-03))
Function (CAN bus):SICK CAN sensor network (Master/Slave, Multiplexer/Server)
CAN bus:+
Scanning frequency:400 Hz ... 1,200 Hz
Connection type:Ethernet
Serial (RS-232, RS-422/485):+
No. of multiple readings:1 ... 99
Bar code types:Interleaved 2 of 5, All current code types, Codabar, Code 128, Code 39, Code 93, GS1 DataBar, GS1-128 / EAN 128, MSI/Plessey, Pharmacode, Telepen, UPC / GTIN / EAN
Protocol (Ethernet):TCP/IP, EtherNet/IP, PROFINET, PROFINET Dual Port (optional via external connection module CDF600-2), EtherCAT (optional via external connection module CDF600)
No. of codes per reading interval:1 ... 50 (auto-discriminating)
Function (Ethernet):Host, AUX
Focus:Fixed focus
Front screen:Plastic
Switching outputs:4 (“Result 1”, “Result 2”, 2 via CMC600 in CDB650)
