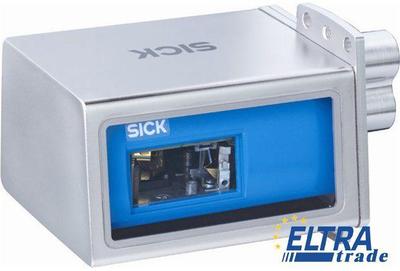

Sick CLV632-1831S01 Bar code scanners

Sick CLV632-1831S01
Item Number: CLV632-1831S01
  • Integrated pushbuttons for auto setup and reading diagnostics
  • Integrated LED bar graph
  • CAN, Ethernet TCP/IP, PROFINET, and EtherNet/IP available on board, no additional gateway needed (depending on variant)
Total price: 2106.57
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1062530
Function (CAN bus):SICK CAN sensor network (Master/Slave, Multiplexer/Server)
No. of characters per reading interval:5,000, 500 (for multiplexer function in CAN operation)
No. of codes per reading interval:1 ... 50 (auto-discriminating)
Focus:Fixed focus
Print ratio:2:1 ... 3:1
Ambient operating temperature:0 °C ... +40 °C
Protection class:III (EN 61140)
Remark (Serial (RS-232, RS-422/485)):AUX (only RS-232)
Field of view:≤ 50 °
Remark (DeviceNet):Optional via external connection module (CDM + CMF)
Bar code print contrast (PCS):≥ 60 %
Configuration software:SOPAS ET
MTBF:40,000 h
Bar code types:Interleaved 2 of 5, All current code types, Codabar, Code 128, Code 39, Code 93, GS1 DataBar, GS1-128 / EAN 128, MSI/Plessey, Pharmacode, Telepen, UPC / GTIN / EAN
Housing color:Stainless steel (unpainted)
Electromagnetic compatibility (EMC):EN 61000-6-3 (2001-10) / EN 61000-6-2:2005
Function (Ethernet):Host, AUX
Front screen:Plastic
Operating voltage:18 V DC ... 30 V DC
Protocol (CAN bus):CANopen, CSN (SICK CAN Sensor Network)
Vibration resistance:EN 60068-2-6 (1995)
Permissible relative humidity:90 %, non-condensing
CAN bus:+
Scanning frequency:400 Hz ... 1,200 Hz
Data transmission rate (Ethernet):10/100 Mbit
Reading pulse:Auto pulse, CAN, Switching inputs, Serial interface
Light source:Visible red light (655 nm)
Switching inputs:4 (“Sensor 1”, “Sensor 2”, 2 inputs via optional CMC600 in CDB650)
Serial (RS-232, RS-422/485):+
Version:Short Range
Data transmission rate (CAN bus):20 kbit/s ... 1 Mbit/s
Enclosure rating:IP 69K (DIN 40 050, part 9)
Reading distance:63 mm ... 270 mm
Data transmission rate (Serial (RS-232, RS-422/485)):2,400 Baud ... 115 kBaud, AUX: 57.6 kBaud
Ambient light safety:2,000 lx, on bar code
Laser class:2 (EN 60825-1 (A2:2001-03))
Protocol (Ethernet):TCP/IP, EtherNet/IP, PROFINET, PROFINET Dual Port (optional via external connection module CDF600-2), EtherCAT (optional via external connection module CDF600)
No. of multiple readings:1 ... 99
Connection type:Ethernet
Switching outputs:4 (“Result 1”, “Result 2”, 2 via CMC600 in CDB650)
No. of codes per scan:1 ... 20 (Standard decoder), 1 ... 6 (SMART decoder)
Code resolution:0.2 mm ... 0.5 mm
Reading field:Front
Electrical connection:2 x M12 cylindrical connectors (1 x 17-pin male connector, 4-pin female connector)
Scanner design:Raster scanner
Remark (PROFIBUS DP):Optional via external connection module (CDF600-2)
Power consumption:5 W
Function (Serial (RS-232, RS-422/485)):Host, AUX
Weight:890 g, without connecting cable
Shock resistance:EN 60068-2-27 (1993)
Housing:Stainless steel
Raster height, number of lines, at distance:15 mm, 8, 200 mm
Dimensions:85 mm x 154 mm x 84 mm
Storage temperature:-20 °C ... +70 °C
