Sick CLV651-6120 Bar code scanners

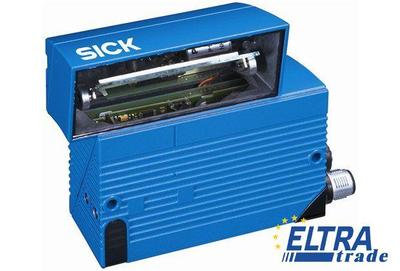

Sick CLV651-6120
Item Number: CLV651-6120
  • Huge depth of field due to auto focus
  • Integrated pushbuttons for auto setup and reading diagnostics
  • CAN, Ethernet TCP/IP, PROFINET, and EtherNet/IP available on board, no additional gateway needed (depending on variant)
4276.62
Quantity
-
+
Total price: 4276.62
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1046560
Heating:Optional
Reading pulse:Auto pulse, CAN, Non-powered, "Sensor 1" switching input, Serial interface
Function (Serial (RS-232, RS-422/485)):Host, AUX
Reading distance:155 mm ... 880 mm
MTBF:40,000 h
Ethernet:+
Remark (DeviceNet):Optional via external connection module (CDM + CMF)
Data transmission rate (CAN bus):20 kbit/s ... 1 Mbit/s
Vibration resistance:EN 60068-2-6 (1995)
Bar code types:Interleaved 2 of 5, All current code types, Codabar, Code 128, Code 39, Code 93, GS1 DataBar, GS1-128 / EAN 128, MSI/Plessey, Pharmacode, Telepen, UPC / GTIN / EAN
Oscillating mirror functions:Fixed (adjustable position), One shot, Oscillating (variable or fixed amplitude)
Laser class:2 (EN 60825-1 (A2:2001-03))
Protocol (CAN bus):CANopen, CSN (SICK CAN Sensor Network)
Operating voltage:18 V DC ... 30 V DC
PROFIBUS DP:+
Control elements:2 buttons (choose and start/stop functions)
Acoustic indicators:Beeper/buzzer (can be switched off, can be allocated as a result indication function)
Memory card:MicroSD memory card (flash card) 512 MB, optional
CAN bus:+
Function (CAN bus):SICK CAN sensor network (Master/Slave, Multiplexer/Server)
No. of characters per reading interval:5,000, 500 (for multiplexer function in CAN operation)
Version:Low Density
Remark (PROFIBUS DP):Optional via external connection module (CDF600-2)
Data transmission rate (Ethernet):10/100 Mbit
Ambient operating temperature:0 °C ... +40 °C
DeviceNet:+
Housing color:Light blue (RAL 5012)
Switching inputs:3 (“Sensor 1”, 2 inputs via optional parameter storage CMC600 in CDB620/CDM420)
Oscillation frequency:0.5 Hz ... 6.25 Hz
Light source:Visible red light (658 nm)
No. of codes per reading interval:1 ... 50 (auto-discriminating)
No. of codes per scan:1 ... 20 (Standard decoder), 1 ... 6 (SMART decoder)
Enclosure rating:IP 65 (EN 60529)
Data transmission rate (Serial (RS-232, RS-422/485)):2,400 Baud ... 115 kBaud, AUX: 57.6 kBaud
Front screen:Glass
Electromagnetic compatibility (EMC):EN 61000-6-3 (2001-10) / EN 61000-6-2:2005
Configuration software:SOPAS ET
Bar code print contrast (PCS):≥ 60 %
Weight:250 g, without connecting cable
Electrical connection:2 x M12 cylindrical connectors (12-pin male connector, 4-pin female connector) on swivel connector
Housing:Die-cast aluminum
Ambient light safety:2,000 lx, on bar code
No. of multiple readings:1 ... 99
Connection type:Ethernet
Scanning frequency:600 Hz ... 1,000 Hz
Protocol (Ethernet):TCP/IP, EtherNet/IP, PROFINET, PROFINET Dual Port (optional via external connection module CDF600-2), EtherCAT (optional via external connection module CDF600)
Power consumption:9.5 W
Serial (RS-232, RS-422/485):+
Optical indicators:6 LEDs (Ready, Result, laser, Data, CAN, LNK TX, Bar graph for displaying the reading rate percentage (10 LEDs))
Code resolution:0.5 mm ... 0.5 mm
Field of view:≤ 50 °
Protection class:III (EN 61140)
Remark (Serial (RS-232, RS-422/485)):AUX (only RS-232)
Scanner design:Line scanner
Angle of deflection:-20 ° ... 20 °
Focus:Auto focus
Shock resistance:EN 60068-2-27 (1993)
Dimensions:95 mm x 96 mm x 41 mm
Reading field:Oscillating mirror
Storage temperature:-20 °C ... +70 °C
Print ratio:2:1 ... 3:1
Permissible relative humidity:90 %, non-condensing
Function (Ethernet):Host, AUX
Switching outputs:2 (via CMC600 in CDB620/CDM420)
