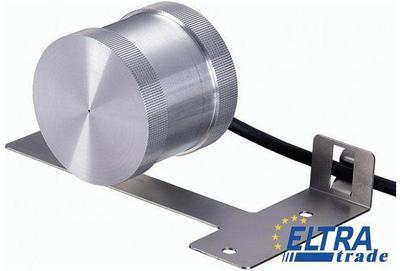

Sick DKV60-A1K02000 DKV60 Incremental encoder

Sick DKV60-A1K02000
Item Number: DKV60-A1K02000
  • Complete, preassembled measuring system
  • Measuring wheel with knurl or O-ring for adaptation to the measuring surface
  • Mounting bracket made from anti-corrosive spring steel
185.93
Quantity
-
+
Total price: 185.93
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick DKV60-A1K02000 is outdated.

Specification:

Part Number1035042
Pulses per revolution:2,000
Air humidity:90 %
Initialization time:40 s
Smallest measuring step:0.025 mm
Electrical interface:4.5 V ... 5.5 V, TTL/RS422, Cable, 1.5 m
Resistance to vibration:20 g, 10 Hz ... 2,000 Hz (EN 60068-2-6)
Enclosure rating:IP 65
Resolution:0.1 mm
MTTFd: mean time to dangerous failure:600 a (EN ISO 13849-1)
Reference signal, position:90 °, electronically, gated with A and B
Supply voltage:4.5 V ... 5.5 V
Reference signal, number:1
Protection class standard:IEC 60529
Resistance to shocks:50 g, 7 ms (EN 60068-2-27)
Error limits knurled surface:± 0.5 mm
Working temperature range:-10 °C ... +60 °C
Output current:30
Mass:0.42 kg
Connection type:Cable, 1.5 m
Mechanical interface:Measuring drum, knurled surface
Storage temperature range:-40 °C ... +70 °C, without package
EMC:EN 61000-6-2, EN 61000-6-3
Maximum operating speed:1,500 U/min
Bearing lifetime:2 x 10^9 revolutions
