Sick DME5000-311 Long range distance sensors

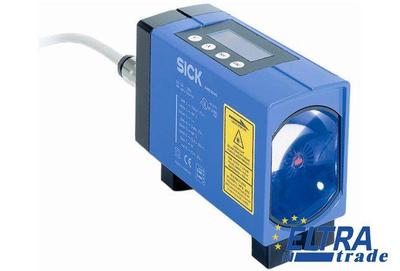

Sick DME5000-311
Item Number: DME5000-311
  • Measurement range from 0.15 m to 300 m
  • Very fast measurement cycles
  • Highest accuracy, repeatability and system availability
4826.98
Quantity
-
+
Total price: 4826.98
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1025244
Power consumption:At 24 V DC < 250 mA
Output current IA :≤ 100 mA
Electromagnetic compatibility (EMC):EN 61000-6-2, EN 55011
Repeatability :2 mm
Typ. light spot size (distance):130 mm (at 70 m)
270 mm (at 150 m)
360 mm (at 220 m)
Resolution:0.05 mm ... 5 mm
Effect of air pressure:0.3 ppm/hPa
Measuring range :0.15 m ... 300 m, on reflective tape "Diamond Grade"
Connection type:Male connector, M16, 8-pin
Ripple :< 5 Vpp
Protection class :II
Light source :Laser, red
Supply voltage Vs:DC 18 V ... 30 V, limit values
Switching output :Push-pull: PNP/NPN (100 mA)
Max. movement speed:10 m/s
Ambient temperature:Operation: -10 ... 55 °C
Operation with cooling case: -10 ... 75 °C
Storage: -25 ... 75 °C
Initialization time :1.5 s
Temperature drift:Typ. 0.1 mm/K
Laser class:2 (EN 60825-1 / CDRH)
Accuracy:± 5 mm
Data interface:SSI
Effect of air temperature:1 ppm/K
Mechanical load:Noise: EN 600 68-2-64
Shock: EN 600 68-2-27 / -2-29
Sine: EN 600 68-2-6
Output rate:1 ms
Multifunctional input (MF) :1 x MF
Weight:Ca. 1,650 g
Enclosure rating:IP 65
Indication:Display
